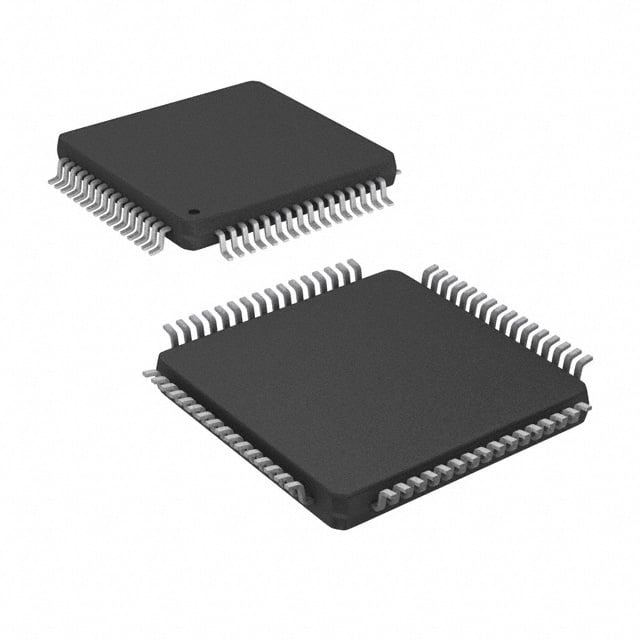

DS90UR124QVS/NOPB TI Deserializer | 64-TQFP (10X10) | 5-65MHz, 24-bit Color

Product Overview

The DS90UR124QVS/NOPB is a 24-bit color FPD-Link II deserializer from Texas Instruments, designed to receive serialized data over a single differential pair and convert it back to parallel LVCMOS data. It operates at clock frequencies from 5 MHz to 65 MHz, supporting pixel clock rates up to 65 MHz. The device integrates a deserializer, clock recovery, and output control logic in a compact 64-pin TQFP (10x10 mm) package. It is ideal for applications requiring high-speed data transmission over long distances with reduced EMI and cable count.

Detailed Technical Specifications

Key Features

• Single differential pair serial interface reduces cable size and cost
• Integrated clock recovery eliminates need for separate clock channel
• Supports 24-bit color depth (RGB888) for high-quality video
• Built-in DC balance encoding for AC-coupled transmission
• Low EMI emission with spread spectrum capability
• Pin-compatible with DS90UR124 (upgrade with improved performance)

Target Applications

• Automotive infotainment and dashboard displays (e.g., Tesla Model 3 center display)
• Industrial cameras and machine vision systems (e.g., Basler ace series)
• Medical imaging equipment (e.g., ultrasound monitors)
• 5G base station control panels and remote radio unit interfaces
• Security surveillance DVRs and camera modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS90UR124QVS/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS90UR124QVS/NOPB 是德州儀器（TI）推出的一款 24 位元色彩 FPD-Link II 解串器，可透過單一差分對接收序列化數據，並將其轉換回並行 LVCMOS 數據。它支援 5 MHz 至 65 MHz 的時脈頻率，像素時脈最高可達 65 MHz。該器件整合了解串器、時脈恢復和輸出控制邏輯，採用緊湊的 64 引腳 TQFP（10x10 mm）封裝。非常適合需要長距離高速數據傳輸且要求降低 EMI 和線纜數量的應用。

詳細技術參數

核心特性

• 單一差分對串列介面，減少線纜尺寸和成本
• 整合時脈恢復，無需獨立時脈通道
• 支援 24 位元色彩深度（RGB888），實現高品質視頻
• 內建 DC 平衡編碼，支援交流耦合傳輸
• 低 EMI 發射，具備展頻能力
• 與 DS90UR124 引腳相容（升級版性能更佳）

典型應用場景

• 汽車資訊娛樂系統與儀表板顯示（例如 Tesla Model 3 中控顯示器）
• 工業相機與機器視覺系統（例如 Basler ace 系列）
• 醫療影像設備（例如超音波監視器）
• 5G 基地台控制面板與遠端射頻單元介面
• 安全監控 DVR 與攝影機模組

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS90UR124QVS/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
