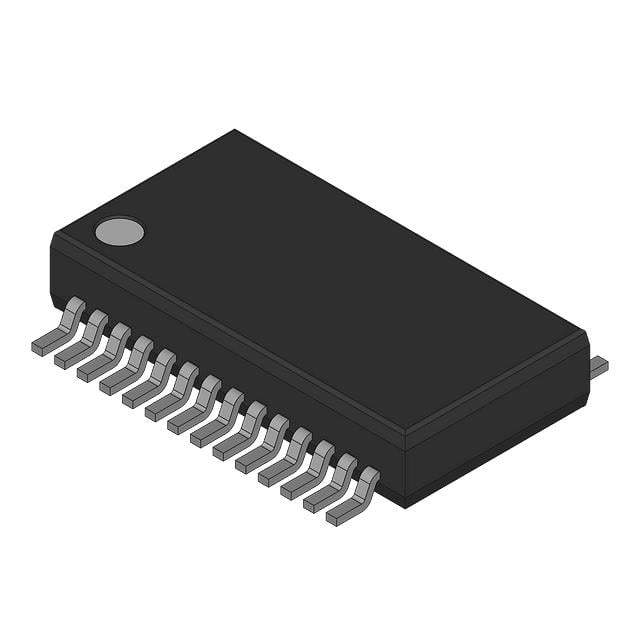

DS92LV1021TMSA/NOPB TI Serializer | 100-660 Mbps, 10:1 LVDS

Product Overview

The DS92LV1021TMSA/NOPB is a 10-bit serializer from Texas Instruments designed for high-speed data transmission over LVDS (Low-Voltage Differential Signaling) channels. It converts 10 parallel LVCMOS/LVTTL data inputs into a single serial LVDS data stream, operating at data rates from 100 Mbps to 660 Mbps. The device includes an embedded clock, eliminating the need for a separate clock line and reducing interconnect complexity. It is ideal for applications requiring high bandwidth and low EMI, such as video displays, automotive infotainment, and industrial imaging.

Detailed Technical Specifications

Key Features

• 10:1 serialization with embedded clock
• Up to 660 Mbps serial data rate
• Low power consumption: 150 mW typical at 660 Mbps
• Wide supply voltage range: 3.0V to 3.6V
• Integrated PLL for clock generation
• Low EMI and reduced cable count
• Industrial temperature range: -40°C to +85°C
• Pin-compatible with DS92LV1021

Target Applications

• 5G base station backplane communication
• Automotive dashboard display links
• Industrial camera video transmission
• Medical imaging equipment
• Digital signage and video walls
• High-speed data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS92LV1021TMSA/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS92LV1021TMSA/NOPB 是德州儀器（TI）推出的10位串行器，專為通過LVDS（低電壓差分信號）通道進行高速數據傳輸而設計。它將10路並行LVCMOS/LVTTL數據輸入轉換為單路串行LVDS數據流，工作數據速率範圍為100 Mbps至660 Mbps。該器件包含嵌入式時鐘，無需單獨的時鐘線，從而降低了互連複雜性。它非常適合需要高帶寬和低EMI的應用，如視頻顯示、汽車信息娛樂和工業成像。

詳細技術參數

核心特性

• 10:1串行化，帶嵌入式時鐘
• 最高660 Mbps串行數據速率
• 低功耗：660 Mbps時典型值150 mW
• 寬供電電壓範圍：3.0V至3.6V
• 集成PLL用於時鐘生成
• 低EMI，減少電纜數量
• 工業溫度範圍：-40°C至+85°C
• 與DS92LV1021引腳兼容

典型應用場景

• 5G基站背板通信
• 汽車儀表盤顯示鏈路
• 工業相機視頻傳輸
• 醫療成像設備
• 數字標牌和視頻牆
• 高速數據採集系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS92LV1021TMSA/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
