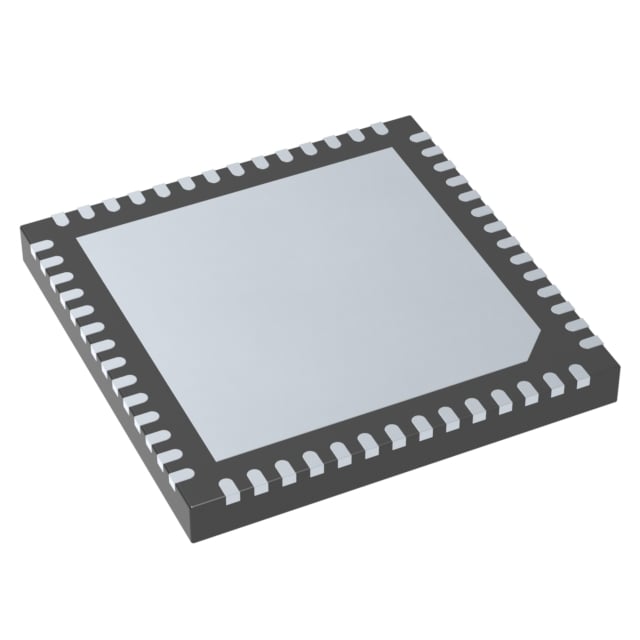

HD3SS215IRTQR TI DisplayPort Switch | 56-QFN(8X8) | 6Gbps, 2:1 Mux

Product Overview

The HD3SS215IRTQR is a high-performance DisplayPort 1.2 switch from Texas Instruments, designed for bidirectional switching of two DisplayPort lanes plus auxiliary (AUX) and Hot Plug Detect (HPD) signals. It supports data rates up to 6 Gbps per lane, making it suitable for high-resolution video applications. The device is housed in a compact 56-pin QFN package (8x8 mm) and operates over a wide supply voltage range of 3.0V to 3.6V. Its low power consumption and high bandwidth make it ideal for routing DisplayPort signals in laptops, docking stations, and other multimedia systems.

Detailed Technical Specifications

Key Features

• Supports DisplayPort 1.2 with data rates up to 6 Gbps per lane
• Bidirectional 2:1 multiplexer/demultiplexer for two DP lanes, AUX, and HPD
• Low power consumption: 1.5 mW typical in standby mode
• Wide supply voltage range: 3.0V to 3.6V
• Integrated ESD protection up to ±8 kV HBM
• Small footprint: 56-pin QFN (8x8 mm)
• Industrial temperature range: -40°C to +85°C

Target Applications

• Laptop and notebook computers (e.g., Dell XPS, Lenovo ThinkPad)
• Docking stations (e.g., Dell WD19, HP Thunderbolt Dock)
• All-in-one PCs (e.g., iMac, HP EliteOne)
• DisplayPort signal routing in 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment systems (e.g., Tesla Model S dashboard display)
• Video wall controllers and digital signage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for HD3SS215IRTQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
