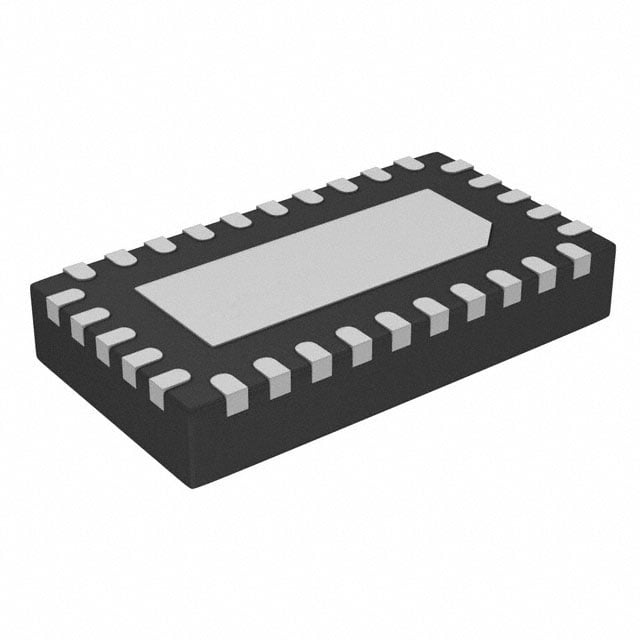

HD3SS3220LRNHR TI USB Type-C Redriver | 30-WQFN (4.5x2.5) | 10Gbps, 3.3V

Product Overview

The HD3SS3220LRNHR is a high-performance USB Type-C redriver from Texas Instruments, designed to support USB 3.1 Gen 2 data rates up to 10 Gbps. It features a 2:1 mux/demux for USB SS and DisplayPort (DP) signals, enabling seamless switching between data and display modes. The device operates from a single 3.3V supply and is housed in a compact 30-pin WQFN package (4.5mm x 2.5mm). It is ideal for applications requiring signal integrity enhancement over long PCB traces or cables.

Detailed Technical Specifications

Key Features

• Supports USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.4
• Integrated 2:1 mux for USB SS and DP signals
• Low power consumption: 300 mW typical
• Small footprint: 4.5mm x 2.5mm WQFN package
• I2C control interface for configuration
• Built-in equalization for signal integrity

Target Applications

• 5G base stations: signal redriving for USB-C control interfaces
• Automotive dashboards: USB-C connectivity for infotainment systems
• Laptops and tablets: USB-C port expansion
• Docking stations: multi-protocol support (USB/DP)
• Industrial PCs: robust USB-C interfaces
