HD3SS460IRNHR TI Multiplexer | 30-WQFN (4.5X2.5) | 10.2Gbps, 2:1/1:2

Product Overview

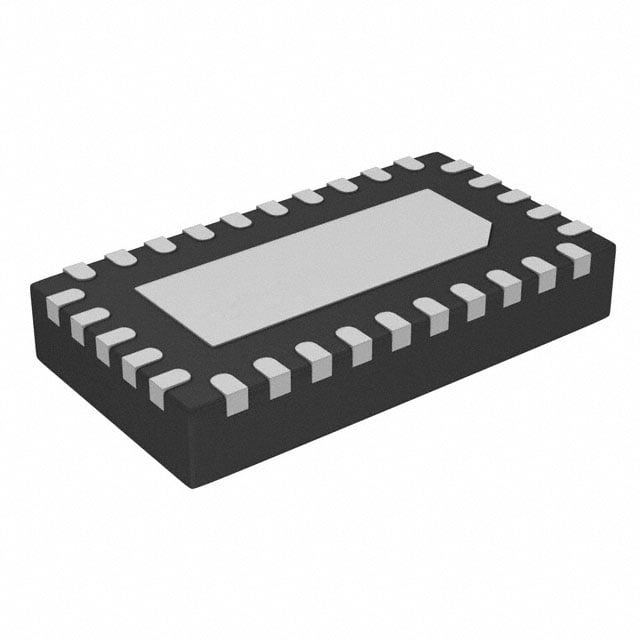

The HD3SS460IRNHR is a high-performance passive switch from Texas Instruments, designed for USB Type-C and DisplayPort alternate mode switching. It supports data rates up to 10.2 Gbps, making it ideal for high-speed signal routing in modern electronic systems. The device operates over a wide supply voltage range of 3.0V to 3.6V and is housed in a compact 30-pin WQFN package (4.5mm x 2.5mm).

Detailed Technical Specifications

Key Features

• Supports USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.4 (HBR3)
• Low insertion loss and return loss for high-speed signals
• Bidirectional operation for USB Type-C cable orientation detection
• Integrated control logic for automatic switching
• Low power consumption: 0.5 mW (typical)
• ESD protection: 2 kV HBM

Target Applications

• USB Type-C hubs and docking stations (e.g., Dell WD19TB)
• Notebook and tablet computers (e.g., Dell XPS 13)
• Smartphones and tablets (e.g., Samsung Galaxy S21)
• 5G base stations (e.g., Nokia AirScale)
• Automotive infotainment and dashboard systems (e.g., Tesla Model 3)
• DisplayPort monitors and adapters (e.g., Dell U2720Q)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for HD3SS460IRNHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
