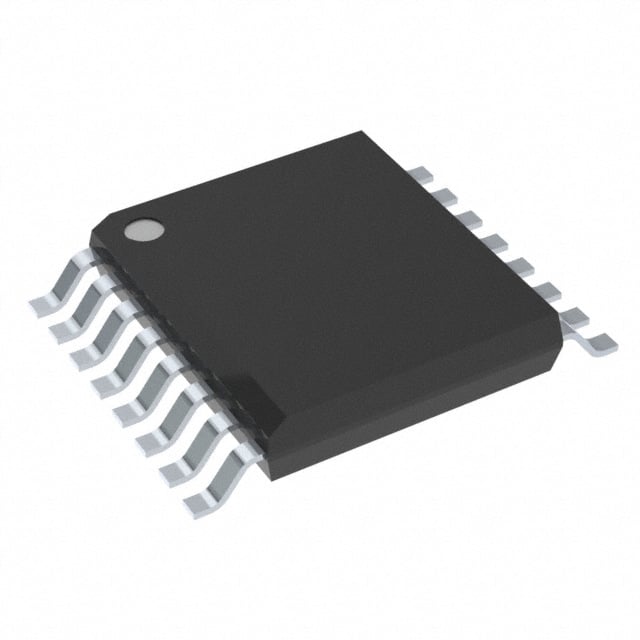

ISO1500DBQR TI Isolator | 16-SSOP | 5.7kV Isolation, 150Mbps

Product Overview

The ISO1500DBQR from Texas Instruments is a high-performance, reinforced isolated RS-485 transceiver designed for reliable data transmission in harsh industrial environments. It integrates a robust isolation barrier capable of withstanding 5.7 kV RMS for 1 minute, ensuring galvanic isolation between the bus and logic side. The device supports data rates up to 150 Mbps, making it suitable for high-speed communication in applications such as 5G base stations, motor drives, and grid infrastructure. Housed in a compact 16-SSOP package, the ISO1500DBQR offers excellent electromagnetic compatibility (EMC) and low power consumption.

Detailed Technical Specifications

Key Features

• Reinforced isolation with 5.7 kV RMS rating
• High data rate up to 150 Mbps
• Wide supply voltage range: 3.0 V to 5.5 V
• ±60 V bus fault protection
• High common-mode transient immunity: 100 kV/µs
• Low propagation delay: 11 ns typical
• Thermal shutdown protection
• Fail-safe receiver for open, short, or idle bus
• 1/8 unit load (up to 256 nodes on bus)
• RoHS compliant

Target Applications

• 5G base station backhaul communication
• Industrial motor drives (e.g., Siemens SINAMICS)
• Smart grid and energy metering (e.g., ABB grid systems)
• Building automation (e.g., HVAC controllers)
• Automotive infotainment and dashboard clusters
• Medical equipment (e.g., patient monitoring systems)
• PLC and industrial networking (e.g., Siemens S7-1500)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for ISO1500DBQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
