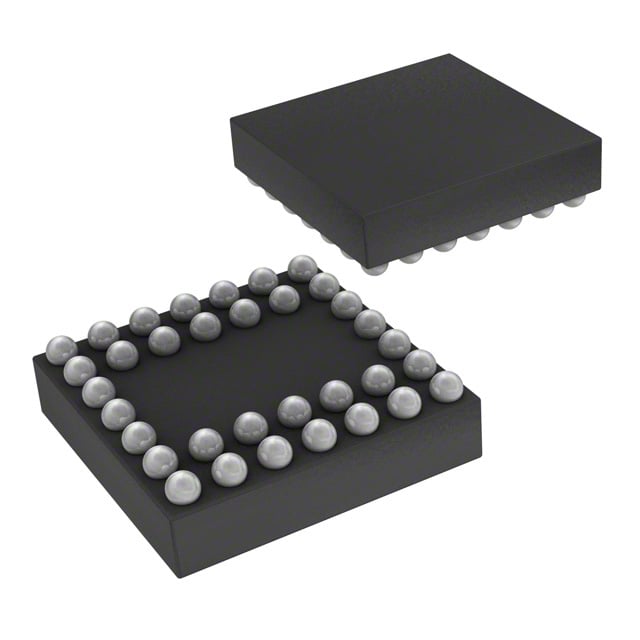

LM10524TME/NOPB TI Power Management IC | 46-DSBGA (2.82x3.22) | 4A Buck, 2 LDOs

Product Overview

The LM10524TME/NOPB is a high-performance power management IC from Texas Instruments, designed for space-constrained applications requiring multiple voltage rails. It integrates a 4A step-down DC-DC converter and two low-dropout linear regulators (LDOs) in a compact 46-bump DSBGA package (2.82mm x 3.22mm). The device operates from a 2.7V to 5.5V input voltage range, making it suitable for battery-powered and point-of-load applications. With high efficiency and low quiescent current, the LM10524TME/NOPB extends battery life in portable electronics while delivering clean power to sensitive loads.

Detailed Technical Specifications

Key Features

• Integrated 4A step-down converter with 2.2MHz switching frequency for small external components
• Two LDOs with low dropout voltage and high PSRR for noise-sensitive rails
• I2C interface for dynamic voltage scaling and configuration
• Power-good output and over-current/thermal protection
• Small footprint: 46-bump DSBGA (0.4mm pitch)
• RoHS compliant and lead-free (NOPB)

Target Applications

• 5G base station: Powering FPGA cores and I/O rails (e.g., Xilinx Zynq UltraScale+)
• Automotive dashboard: Supply for infotainment processors (e.g., Qualcomm Snapdragon SA8155P)
• Portable medical devices: Battery-powered patient monitors
• Industrial IoT: Wireless sensor nodes and edge gateways
• Consumer electronics: Smartphones, tablets, and AR/VR headsets

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM10524TME/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM10524TME/NOPB 是德州儀器（TI）推出的一款高性能電源管理 IC，專為需要多電壓軌的空間受限應用而設計。它集成了一個 4A 降壓 DC-DC 轉換器和兩個低壓差線性穩壓器（LDO），採用緊湊的 46 焊球 DSBGA 封裝（2.82mm x 3.22mm）。該器件在 2.7V 至 5.5V 的輸入電壓範圍內工作，適用於電池供電和負載點應用。憑藉高效率與低靜態電流，LM10524TME/NOPB 可延長便攜式電子設備的電池壽命，同時為敏感負載提供乾淨的電源。

詳細技術參數

核心特性

• 集成 4A 降壓轉換器，2.2MHz 開關頻率，支持小型外部元件
• 兩個 LDO，低壓差和高 PSRR，適用於噪聲敏感電軌
• I2C 接口，支持動態電壓調節和配置
• 電源正常輸出和過流/過熱保護
• 小尺寸：46 焊球 DSBGA（0.4mm 間距）
• 符合 RoHS 標準且無鉛（NOPB）

典型應用場景

• 5G 基站：為 FPGA 內核和 I/O 電軌供電（例如 Xilinx Zynq UltraScale+）
• 汽車儀表板：為信息娛樂處理器供電（例如 Qualcomm Snapdragon SA8155P）
• 便攜式醫療設備：電池供電的病人監護儀
• 工業物聯網：無線傳感器節點和邊緣網關
• 消費電子：智能手機、平板電腦和 AR/VR 頭戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM10524TME/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
