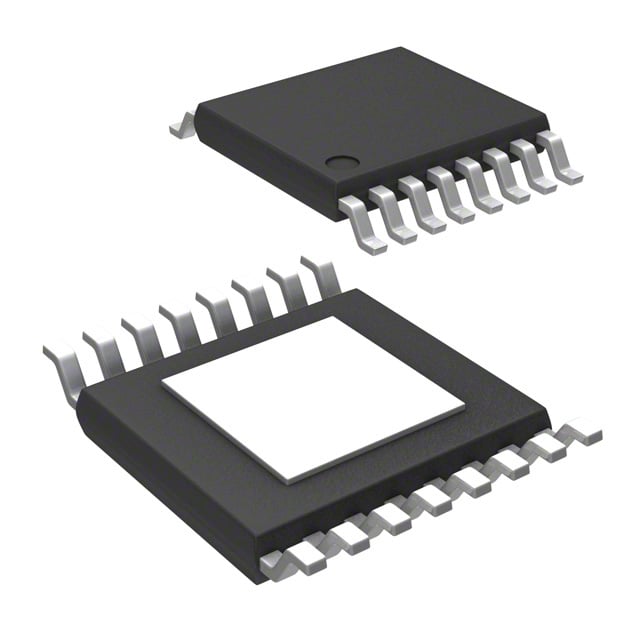

LM20136MH/NOPB TI Step-Down Regulator | 16-HTSSOP | 3A, 1MHz

Product Overview

The LM20136MH/NOPB is a high-performance, 3A step-down (buck) voltage regulator from Texas Instruments, designed for space-constrained applications. Housed in a 16-lead HTSSOP package with an exposed pad for enhanced thermal dissipation, this device offers excellent efficiency and reliability. It operates over a wide input voltage range of 2.95V to 5.5V, making it suitable for point-of-load regulation in various systems.

Detailed Technical Specifications

Key Features

• 3A continuous output current
• Integrated 40mΩ high-side and 20mΩ low-side MOSFETs
• Fixed 1 MHz switching frequency for small external components
• Adjustable output voltage from 0.8V to 5V
• Precision enable pin with hysteresis
• Overcurrent, overtemperature, and short-circuit protection
• Power-good output flag
• Soft-start to reduce inrush current

Target Applications

• 5G base station power management (e.g., for FPGA core voltage)
• Automotive dashboard displays and infotainment systems
• Industrial control systems (e.g., PLC modules)
• Networking equipment (e.g., routers, switches)
• Point-of-load regulation for DSPs and ASICs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM20136MH/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
