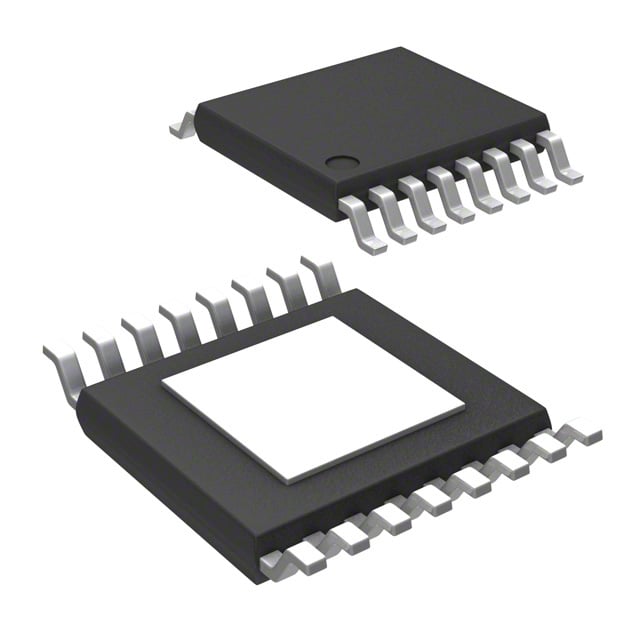

LM20144MH/NOPB TI Power Management IC | 16-HTSSOP | 4A, 1MHz Step-Down Regulator

Product Overview

The LM20144MH/NOPB is a high-performance, 4A step-down DC-DC converter from Texas Instruments, designed for point-of-load regulation in space-constrained applications. Housed in a 16-lead HTSSOP package with exposed pad for enhanced thermal performance, this device integrates a low RDS(on) MOSFET and operates at a fixed 1MHz switching frequency, enabling small external components. With an input voltage range of 2.95V to 5.5V, it provides an adjustable output voltage down to 0.8V with ±1.5% accuracy over line, load, and temperature. The LM20144MH/NOPB features cycle-by-cycle current limit, thermal shutdown, and output overvoltage protection, making it a robust solution for demanding industrial and telecom systems.

Detailed Technical Specifications

Key Features

• Integrated 4A MOSFET with low RDS(on) for high efficiency
• Fixed 1MHz switching frequency minimizes external inductor and capacitor size
• Adjustable output voltage from 0.8V to VIN with ±1.5% accuracy
• Precision enable pin with hysteresis for sequencing
• Soft-start reduces inrush current
• Power Good flag for output monitoring
• Thermal shutdown and overcurrent protection
• Available in RoHS-compliant 16-HTSSOP package

Target Applications

• 5G base station power supplies (e.g., remote radio unit, baseband unit)
• Automotive infotainment and dashboard systems (e.g., head unit, cluster)
• Industrial control systems (e.g., PLC, motor drives)
• Telecom and networking equipment (e.g., routers, switches)
• FPGA and DSP core voltage regulation (e.g., Xilinx, TI DSP)
• Point-of-load converters for servers and storage

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM20144MH/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
