LM2796TL/NOPB TI LED Driver | 18-DSBGA | 1.5x/1x Charge Pump, 30mA

Product Overview

The LM2796TL/NOPB is a high-efficiency, low-noise, regulated output charge pump LED driver from Texas Instruments. It is designed to drive up to 6 LEDs with constant current for backlighting or indicator applications. The device operates from a 2.7V to 5.5V input voltage range and provides a regulated output voltage of up to 5.5V. The LM2796TL/NOPB features a 1.5x/1x charge pump mode for optimal efficiency, and it includes overvoltage protection, thermal shutdown, and soft-start functionality. The compact 18-DSBGA package makes it ideal for space-constrained portable devices.

Detailed Technical Specifications

Key Features

• High efficiency: up to 90% with 1.5x/1x charge pump
• Low noise: 1.2MHz switching frequency reduces output ripple
• Regulated output current: ±5% accuracy
• Overvoltage protection (OVP)
• Thermal shutdown protection
• Soft-start to reduce inrush current

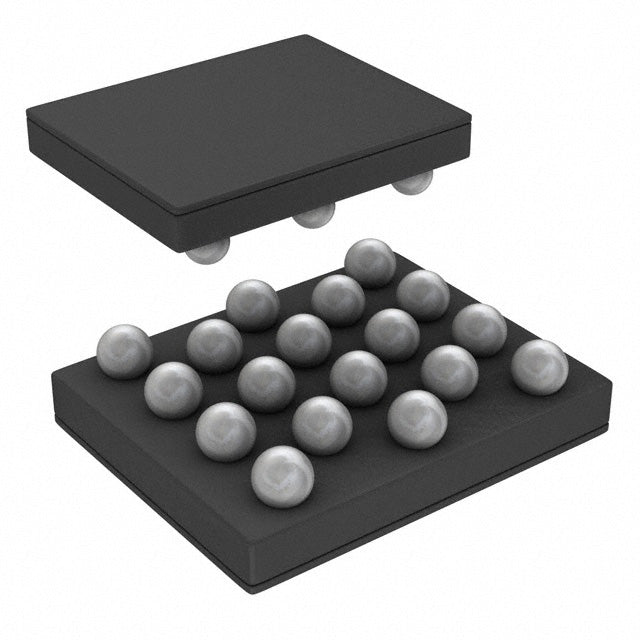

• Small package: 18-DSBGA (1.6mm x 1.6mm)
• Low shutdown current: 0.5µA

Target Applications

• Smartphone and tablet backlighting
• Portable media players
• Digital cameras
• GPS navigation devices
• Wearable devices
• Industrial handheld terminals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM2796TL/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
