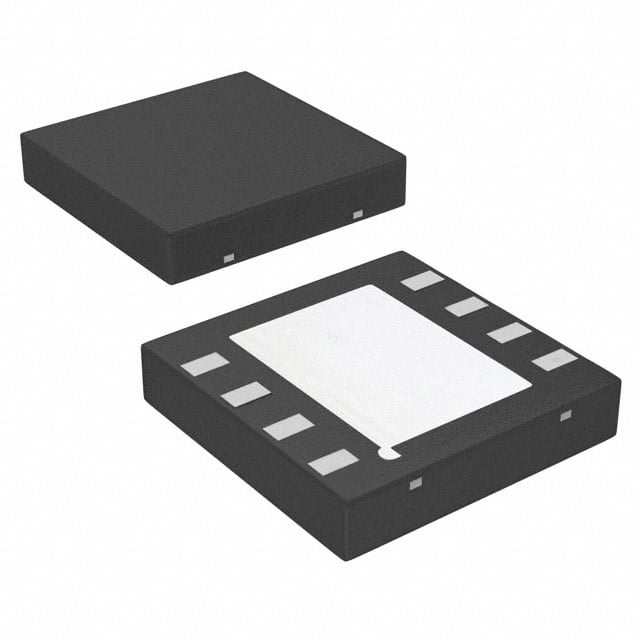

LM2940LD-12 TI Linear Voltage Regulator | 8-WSON（4X4） | 12V Output, 1A

Product Overview

The LM2940LD-12 from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed to deliver a fixed 12V output with a maximum output current of 1A. Housed in an 8-WSON (4x4mm) package, it offers excellent thermal performance and a compact footprint, making it ideal for space-constrained applications. The device features a dropout voltage of typically 0.5V at full load, ensuring efficient operation even when the input voltage is close to the output. With built-in protection features such as overcurrent and thermal shutdown, the LM2940LD-12 provides a reliable power solution for a wide range of industrial, automotive, and telecommunications systems.

Detailed Technical Specifications

Key Features

• Fixed 12V output with ±2% accuracy
• Low dropout voltage: 0.5V typical at 1A
• Output current up to 1A
• Wide input voltage range: 14V to 26V
• Low quiescent current: 10mA typical
• Built-in overcurrent and thermal shutdown protection
• Stable with low ESR output capacitors (10µF ceramic)
• Compact 8-WSON (4x4mm) package for space-saving designs

Target Applications

• 5G base station power management
• Automotive dashboard and infotainment systems
• Industrial control systems
• Telecommunications equipment
• Portable battery-powered devices
• Post-regulation for switching power supplies
