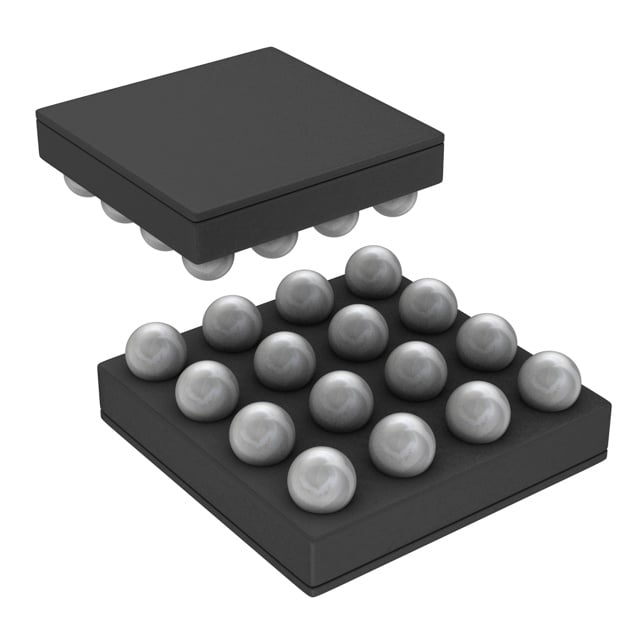

LM3560TLE-20/NOPB TI LED Driver | 16-DSBGA (2.5X2.12) | 2.5A Flash, I2C

Product Overview

The LM3560TLE-20/NOPB is a high-power, synchronous boost LED flash driver from Texas Instruments, designed for camera flash applications in mobile devices. It integrates a 2.5A flash current capability with I2C-compatible interface, enabling precise control over flash and torch modes. The device operates from a single Li-Ion battery and provides up to 92% efficiency. Packaged in a compact 16-DSBGA (2.5mm x 2.12mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• High flash current up to 2.5A for bright camera flash
• I2C interface for flexible control
• Integrated 2.0 MHz boost converter with small external components
• Low quiescent current for extended battery life
• Built-in safety features: over-voltage, over-current, and thermal protection
• Small footprint package suitable for slim devices

Target Applications

• Smartphone camera flash (e.g., iPhone 14, Samsung Galaxy S23)
• Tablet camera flash (e.g., iPad Pro)
• Digital still cameras (e.g., Canon PowerShot)
• Portable medical imaging devices
• Industrial handheld scanners
