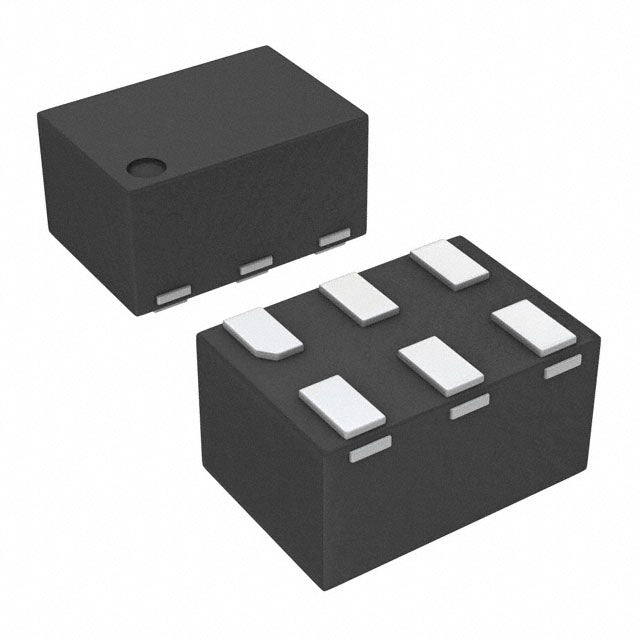

LM3677LEE-1.5/NOPB TI DC-DC Converter | 6-USON(2x1.5) | 1.5V Fixed Output, 600mA

Product Overview

The LM3677LEE-1.5/NOPB is a high-efficiency, step-down DC-DC converter from Texas Instruments, designed to deliver a fixed 1.5V output with up to 600mA load current. Housed in a compact 6-pin USON package (2mm x 1.5mm), this device is ideal for space-constrained applications requiring low noise and high efficiency. With a wide input voltage range of 2.7V to 5.5V, it supports single-cell Li-Ion batteries and standard 3.3V/5V rails. The LM3677 features automatic PFM/PWM mode switching, ensuring high efficiency across the entire load range, and includes internal soft-start, over-current protection, and thermal shutdown.

Detailed Technical Specifications

Key Features

• Fixed 1.5V output with ±2% accuracy
• High efficiency: up to 95%
• Automatic PFM/PWM mode switching for light-load efficiency
• Low quiescent current: 30µA (typical)
• Internal soft-start limits inrush current
• Over-current and thermal shutdown protection
• Small 6-pin USON package (2mm x 1.5mm)
• RoHS compliant and lead-free (NOPB)

Target Applications

The LM3677LEE-1.5/NOPB is suitable for a wide range of portable and battery-powered devices, including:

• Smartphones and tablets (e.g., Samsung Galaxy series, Apple iPad)
• Wireless headsets and wearables (e.g., Apple AirPods, Fitbit)
• Portable medical devices (e.g., glucose monitors, pulse oximeters)
• IoT modules and sensors (e.g., Texas Instruments CC2650, ESP32)
• 5G small cell base stations (e.g., Nokia AirScale)
• Automotive infotainment and dashboard systems (e.g., Tesla Model 3 display)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3677LEE-1.5/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM3677LEE-1.5/NOPB 是德州儀器（TI）推出的一款高效降壓型 DC-DC 轉換器，可提供固定的 1.5V 輸出電壓，最大負載電流為 600mA。該器件採用緊湊的 6 引腳 USON 封裝（2mm x 1.5mm），非常適合對空間有嚴格要求且需要低噪聲和高效率的應用。輸入電壓範圍為 2.7V 至 5.5V，支援單節鋰離子電池以及標準的 3.3V/5V 電源軌。LM3677 具有自動 PFM/PWM 模式切換功能，可在整個負載範圍內保持高效率，並內置軟啟動、過流保護和熱關斷功能。

詳細技術參數

核心特性

• 固定 1.5V 輸出，精度 ±2%
• 高效率：高達 95%
• 自動 PFM/PWM 模式切換，輕載高效
• 低靜態電流：30µA（典型值）
• 內部軟啟動限制浪湧電流
• 過流保護和熱關斷
• 小型 6 引腳 USON 封裝（2mm x 1.5mm）
• 符合 RoHS 標準且無鉛（NOPB）

典型應用場景

LM3677LEE-1.5/NOPB 適用於多種便攜式和電池供電設備，包括：

• 智能手機和平板電腦（例如三星 Galaxy 系列、Apple iPad）
• 無線耳機和可穿戴設備（例如 Apple AirPods、Fitbit）
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 物聯網模塊和傳感器（例如 TI CC2650、ESP32）
• 5G 小型基站（例如 Nokia AirScale）
• 汽車信息娛樂和儀表板系統（例如 Tesla Model 3 顯示屏）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM3677LEE-1.5/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
