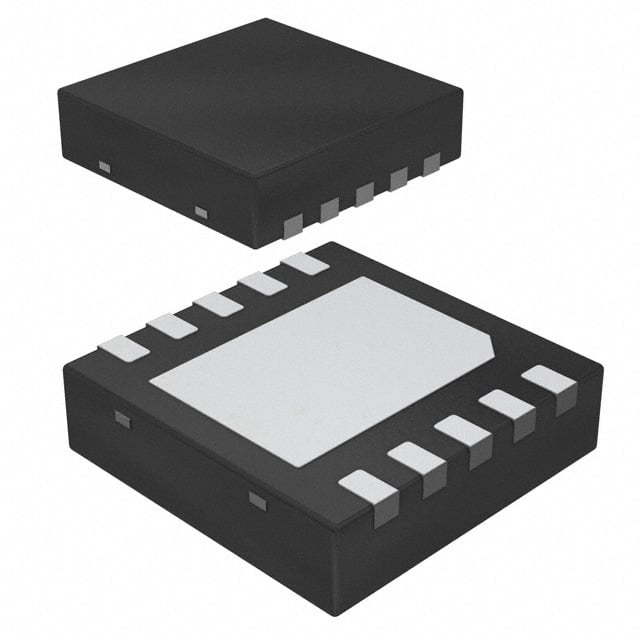

LM5101ASDX/NOPB TI Gate Driver | 10-WSON (4x4) | 100V, 3A Peak

Product Overview

The LM5101ASDX/NOPB is a high-voltage gate driver from Texas Instruments, designed to drive both high-side and low-side N-channel MOSFETs in half-bridge or full-bridge configurations. It features a floating high-side driver capable of operating up to 100V, with a peak output current of 3A. The device is housed in a compact 10-WSON (4x4) package, making it suitable for space-constrained applications. With integrated bootstrap diode and UVLO protection, it ensures reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Floating high-side driver up to 100V
• 3A peak gate drive current
• Integrated bootstrap diode
• Under-voltage lockout (UVLO) on both VDD and VBS
• Matched propagation delays for high-side and low-side
• Low power consumption
• Thermal shutdown protection
• RoHS compliant

Target Applications

• 5G base station power supplies
• Automotive dashboard displays (backlight inverters)
• Industrial motor drives
• DC-DC converters and inverters
• Class-D audio amplifiers
• Solar inverters
