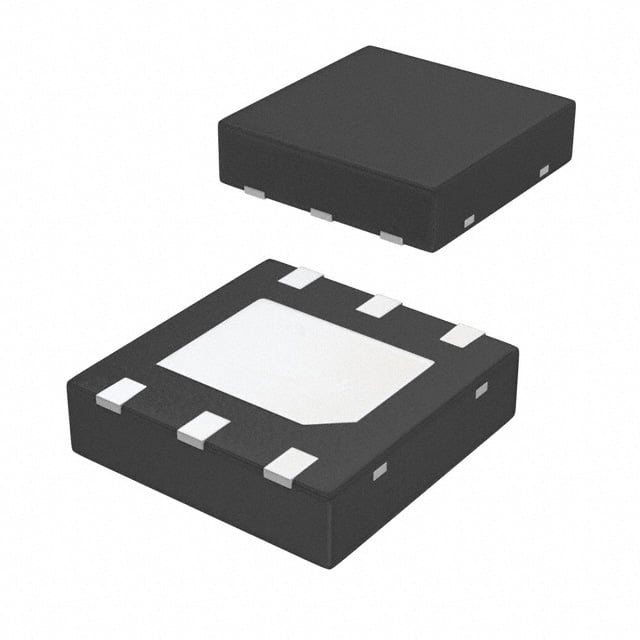

LM5114BSD/NOPB TI Gate Driver | 6-WSON(3x3) | 7.6A Peak, 1.6A Sink

Product Overview

The LM5114BSD/NOPB is a high-speed, low-side gate driver from Texas Instruments, designed to drive MOSFETs and IGBTs in power conversion applications. Housed in a compact 6-WSON (3x3 mm) package, it delivers 7.6A peak source and 1.6A sink current, enabling efficient switching at high frequencies. The device features a wide supply voltage range of 4.5V to 14V, making it suitable for various power systems. Its robust design includes undervoltage lockout (UVLO) and thermal shutdown protection, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• High peak source current: 7.6 A
• Low propagation delay: 25 ns
• Fast rise and fall times: 12 ns
• Wide supply voltage range: 4.5 V to 14 V
• Undervoltage lockout (UVLO) protection
• Thermal shutdown protection
• Compact 6-WSON package (3x3 mm)
• RoHS compliant

Target Applications

• 5G base station power supplies
• Automotive dashboard displays
• Industrial motor drives
• DC-DC converters
• Solar inverters
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5114BSD/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
