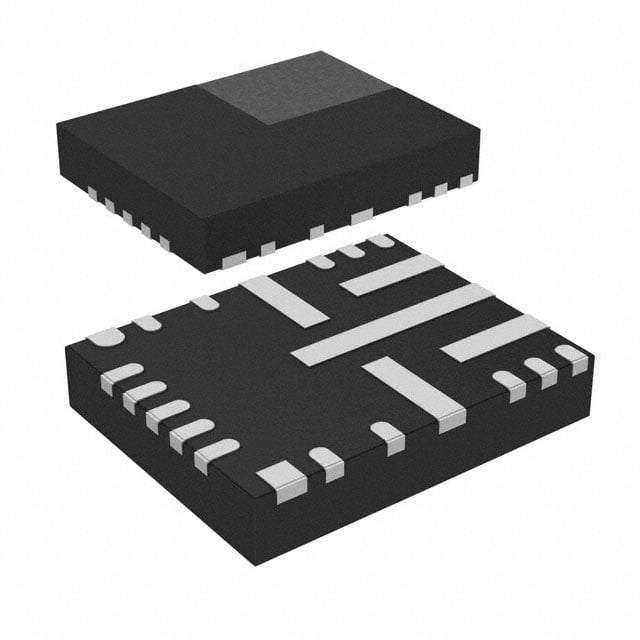

LM536253QRNLTQ1 TI Switching Voltage Regulator | 22-VQFN-HR (5x4) | 36V, 2.5A, 2.1MHz

Product Overview

The LM536253QRNLTQ1 is a high-performance, automotive-grade synchronous buck converter from Texas Instruments. It operates over a wide input voltage range of 3.5V to 36V, making it suitable for 12V and 24V automotive systems. The device delivers up to 2.5A of continuous output current with excellent efficiency, thanks to its integrated low RDS(on) MOSFETs. The LM536253QRNLTQ1 is available in a compact 22-pin VQFN-HR package (5mm x 4mm) with enhanced thermal performance.

Detailed Technical Specifications

Key Features

• AEC-Q100 qualified for automotive applications
• Wide input voltage range: 3.5V to 36V (42V transient)
• Integrated high-side and low-side MOSFETs
• Fixed 2.1MHz switching frequency for small solution size
• Low quiescent current: 15 µA (typical)
• Adjustable output voltage with ±1% accuracy
• Built-in protection: OVP, OCP, OTP, UVLO
• Spread spectrum for EMI reduction
• Power Good output
• Enable and soft-start control

Target Applications

• Automotive infotainment systems (e.g., Tesla Model 3 dashboard display)
• Advanced driver-assistance systems (ADAS) cameras and radar modules
• 5G base station power supplies (e.g., Nokia AirScale baseband units)
• Industrial motor drives and PLCs
• Portable medical devices (e.g., ultrasound scanners)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM536253QRNLTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
