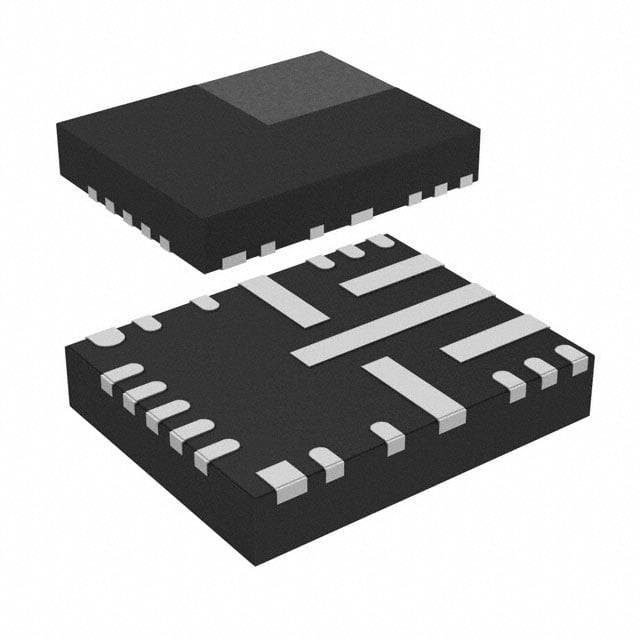

LM53625NQURNLRQ1 TI Switching Voltage Regulator | 22-VQFN-HR(5X4) | 2.5A, 36V

Product Overview

The LM53625NQURNLRQ1 is a high-performance, automotive-grade synchronous buck converter from Texas Instruments. It integrates high-side and low-side MOSFETs to deliver up to 2.5A continuous output current. With a wide input voltage range of 3.5V to 36V, it is ideal for 12V and 24V automotive systems. The device operates at a fixed 2.1MHz switching frequency, enabling small external components and reducing solution size. It features low quiescent current (15µA typical) for enhanced light-load efficiency, making it suitable for always-on applications.

Detailed Technical Specifications

Key Features

• Integrated high-side and low-side MOSFETs
• Wide input voltage range: 3.5V to 36V
• High efficiency up to 95%
• Low EMI with spread spectrum option
• Adjustable soft-start
• Power-good output
• Enable pin with adjustable undervoltage lockout
• Automotive AEC-Q100 qualified

Target Applications

• Automotive infotainment systems (e.g., dashboard displays, head units)
• Advanced driver-assistance systems (ADAS) cameras and sensors
• 5G base station power supplies
• Industrial and telecom power modules
• Battery-powered equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM53625NQURNLRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM53625NQURNLRQ1 是德州儀器推出的一款高性能、車規級同步降壓轉換器。它集成了高側和低側 MOSFET，可提供高達 2.5A 的連續輸出電流。具有 3.5V 至 36V 的寬輸入電壓範圍，非常適合 12V 和 24V 汽車系統。器件以 2.1MHz 固定開關頻率工作，可實現小型外部元件並減小解決方案尺寸。典型靜態電流僅 15µA，提高了輕載效率，適用於常開應用。

詳細技術參數

核心特性

• 集成高側和低側 MOSFET
• 寬輸入電壓範圍：3.5V 至 36V
• 高效率，最高可達 95%
• 低 EMI，可選展頻
• 可調軟啟動
• 電源正常指示輸出
• 使能引腳，帶可調欠壓鎖定
• 通過 AEC-Q100 車規認證

典型應用場景

• 汽車信息娛樂系統（例如儀表板顯示、主機）
• 高級駕駛輔助系統（ADAS）攝像頭和傳感器
• 5G 基站電源
• 工業和電信電源模塊
• 電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM53625NQURNLRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
