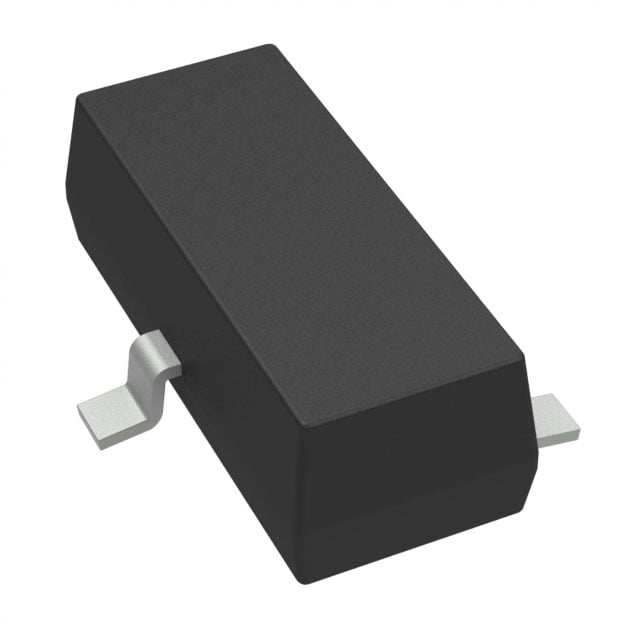

LM809M3X-3.08/NOPB TI Supervisory Circuit | SOT-23-3 | 3.08V Threshold, Active-Low Reset

Product Overview

The LM809M3X-3.08/NOPB is a supervisory circuit from Texas Instruments designed to monitor power supplies in microprocessor-based systems. It provides a reset output during power-up, power-down, and brownout conditions. The device features a fixed 3.08V threshold voltage and an active-low reset output. It is available in a compact SOT-23-3 package, making it suitable for space-constrained applications. The LM809M3X-3.08/NOPB ensures reliable system operation by preventing code execution errors during voltage transients.

Detailed Technical Specifications

Key Features

• Precision 3.08V threshold voltage with ±1.5% accuracy over temperature
• Low supply current of 15 µA (typical)
• Active-low reset output with open-drain configuration
• Reset timeout delay of 240 ms (minimum) ensures system stabilization
• Guaranteed reset output valid down to VCC = 1.0V
• No external components required
• Small SOT-23-3 package for space-saving designs

Target Applications

• 5G base station power management modules
• Automotive dashboard infotainment systems
• Industrial PLC controllers
• Portable medical devices (e.g., glucose monitors)
• IoT edge nodes and smart sensors
• FPGA and DSP power supply monitoring

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM809M3X-3.08/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
