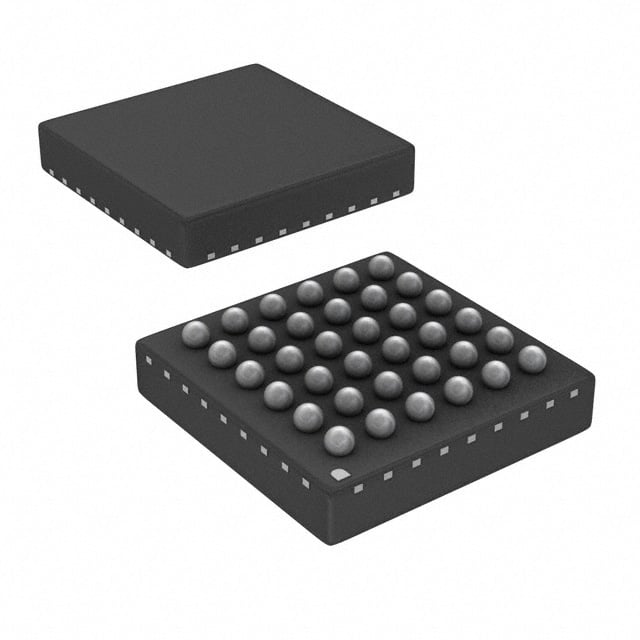

LM8327JGR8X/NOPB TI I/O Expander | 36-CSBGA (3.5X3.5) | 1.8V-5.5V, 24 GPIO

Product Overview

The LM8327JGR8X/NOPB is a low-voltage, 24-pin I/O expander from Texas Instruments designed for I²C-bus/SMBus interface. It provides general-purpose remote I/O expansion for most microcontroller families via a two-wire bidirectional serial bus. The device operates from a supply voltage range of 1.8V to 5.5V, making it suitable for a wide variety of applications. It features 24 configurable GPIO pins, each with internal pull-up resistors, and supports interrupt output for event-driven communication. The compact 36-CSBGA (3.5x3.5mm) package enables space-constrained designs.

Detailed Technical Specifications

Key Features

• 24 bidirectional I/O pins with internal pull-up resistors
• I²C-bus/SMBus compatible interface, up to 400 kHz
• Low standby current consumption (1 µA typical)
• Open-drain active-low interrupt output
• 5V tolerant I/O pins
• Power-on reset with all registers set to default
• No glitch on power-up
• Supports hot insertion

Target Applications

• 5G base station control and monitoring (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive dashboard and infotainment systems (e.g., Tesla Model 3 center display)
• Industrial PLC I/O expansion modules
• Server and networking equipment (e.g., Cisco Catalyst switches)
• Portable medical devices (e.g., glucose meters, patient monitors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM8327JGR8X/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM8327JGR8X/NOPB 是德州儀器推出的低電壓 24 引腳 I/O 擴展器，採用 I²C 總線/SMBus 接口。它通過雙向串行總線為大多數微控制器系列提供通用遠程 I/O 擴展。器件工作電源電壓範圍為 1.8V 至 5.5V，適用於多種應用。它具有 24 個可配置 GPIO 引腳，每個引腳帶內部上拉電阻，並支持中斷輸出以實現事件驅動通信。緊湊的 36-CSBGA（3.5x3.5mm）封裝適用於空間受限的設計。

詳細技術參數

核心特性

• 24 個雙向 I/O 引腳，帶內部上拉電阻
• 兼容 I²C 總線/SMBus 接口，最高 400 kHz
• 低待機電流消耗（典型值 1 µA）
• 開漏低電平有效中斷輸出
• 5V 耐受 I/O 引腳
• 上電復位，所有寄存器恢復默認值
• 上電無毛刺
• 支持熱插拔

典型應用場景

• 5G 基站控制與監控（例如 Nokia AirScale、Ericsson Radio System）
• 汽車儀表盤與信息娛樂系統（例如 Tesla Model 3 中控顯示屏）
• 工業 PLC I/O 擴展模塊
• 服務器與網絡設備（例如 Cisco Catalyst 交換機）
• 便攜式醫療設備（例如血糖儀、病人監護儀）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM8327JGR8X/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
