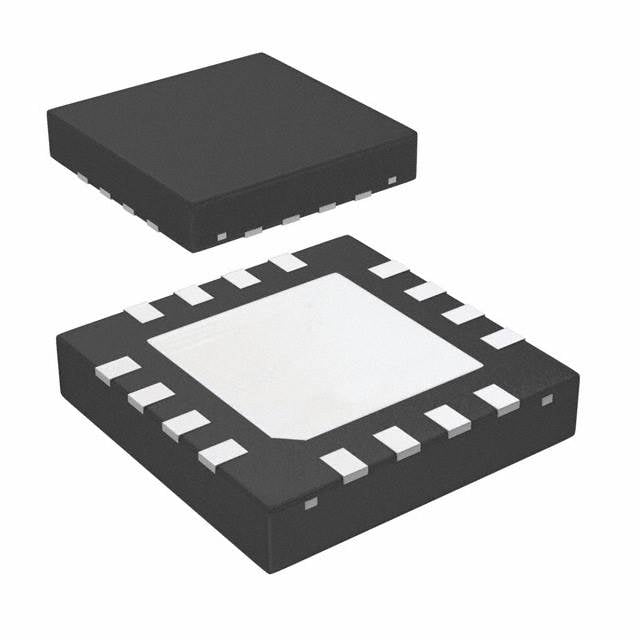

LMH0394SQ/NOPB TI Video Equalizer | 16-WQFN (4x4) | 3G HD-SDI, Cable Driver

Product Overview

The LMH0394SQ/NOPB is a high-performance 3G HD-SDI cable equalizer and cable driver from Texas Instruments, designed for broadcast video applications. It supports data rates up to 2.97 Gbps and features automatic cable equalization for up to 140 meters of Belden 1694A cable. The device operates from a single 3.3V supply and is housed in a compact 16-pin WQFN (4x4 mm) package, making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Supports SMPTE ST 424, ST 292, and ST 259 standards
• Automatic cable equalization with adaptive filtering
• Integrated cable driver with adjustable output amplitude
• Low power consumption: 180 mW typical
• Single 3.3V supply operation
• Small footprint: 4x4 mm WQFN package
• Built-in loop-through output for monitoring

Target Applications

• Broadcast video infrastructure (e.g., Grass Valley Kayenne video switcher)
• 3G/HD-SDI routers and distribution amplifiers (e.g., Evertz 7700 series)
• Professional cameras and camcorders (e.g., Sony HDC-5500)
• Video surveillance systems (e.g., Bosch MIC IP starlight 7100i)
• Medical imaging equipment (e.g., Olympus EVIS EXERA III)
• Digital signage and video walls (e.g., Barco UniSee)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMH0394SQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
