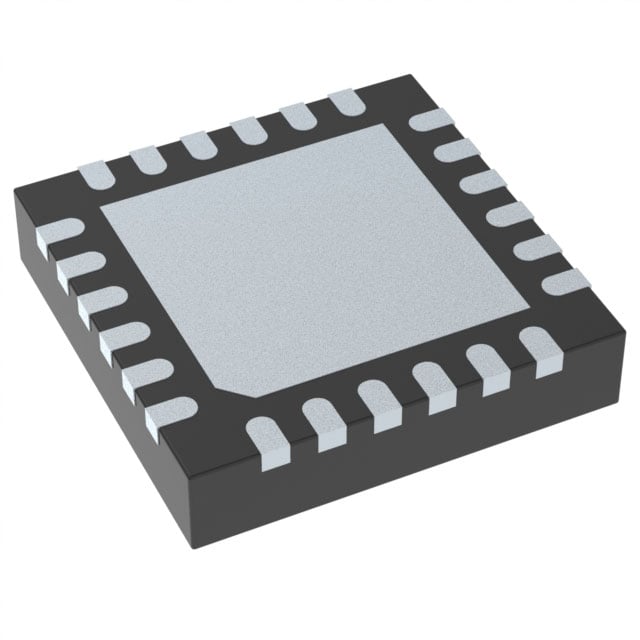

LMK00105SQX/NOPB TI Clock Buffer | 24-WQFN (4x4) | 1:5 Fanout, LVDS

Product Overview

The LMK00105SQX/NOPB is a high-performance clock buffer from Texas Instruments, designed to distribute low-jitter clock signals with minimal additive phase noise. It features a 1:5 fanout configuration, supporting LVDS output logic, and operates over a wide frequency range. Housed in a compact 24-WQFN (4x4 mm) package, it is ideal for demanding applications such as 5G base stations, data converters, and high-speed networking equipment.

Detailed Technical Specifications

Key Features

• 1:5 fanout clock buffer with LVDS outputs
• Ultra-low additive jitter: 0.02 ps RMS typical
• Wide input frequency range: DC to 2.5 GHz
• Supports multiple input standards: LVDS, LVPECL, HCSL, CML
• Output skew less than 20 ps
• Fail-safe input and output enable control
• Small 4x4 mm QFN package for space-constrained designs

Target Applications

• 5G base station clock distribution (e.g., Massive MIMO, remote radio units)
• High-speed data converters (ADC/DAC) clocking (e.g., ADS54J60, DAC38RF82)
• Networking switches and routers (e.g., 400G Ethernet)
• FPGA reference clock distribution (e.g., Xilinx Virtex UltraScale+)
• Automotive radar and advanced driver-assistance systems (ADAS)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK00105SQX/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
