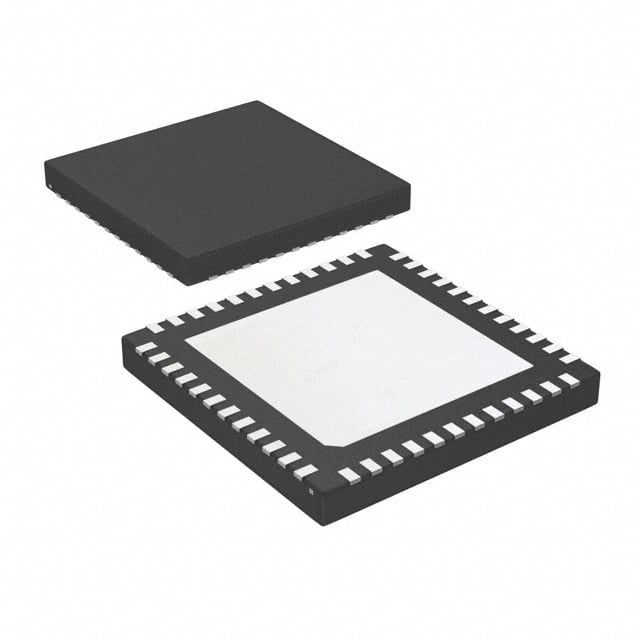

LMK04100SQE/NOPB TI Clock Generator | 48-WQFN (7x7) | 3.2GHz VCO, 14 Outputs

Product Overview

The LMK04100SQE/NOPB is a high-performance clock generator from Texas Instruments, designed for demanding applications requiring low jitter and multiple output frequencies. It integrates a 3.2 GHz VCO and provides up to 14 differential or 28 single-ended clock outputs. The device supports fractional-N and integer-N PLL synthesis, enabling precise frequency generation with fine resolution. Housed in a compact 48-WQFN (7x7 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 0.1 ps RMS (12 kHz to 20 MHz)
• Integrated 3.2 GHz VCO with low phase noise
• 14 differential outputs with programmable format (LVDS, LVPECL, HCSL, etc.)
• Fractional-N and integer-N PLL modes
• Digital delay and skew adjustment
• I2C/SPI interface for configuration
• On-chip voltage regulators for noise immunity

Target Applications

The LMK04100SQE/NOPB is ideal for high-speed data conversion, wireless infrastructure, and instrumentation. Specific applications include:

• 5G base station clocking (e.g., massive MIMO transceivers)
• Automotive radar and advanced driver-assistance systems (ADAS) dashboards
• High-speed ADC/DAC clocking (e.g., TI ADC12DJ3200)
• FPGA reference clocks (e.g., Xilinx RFSoC)
• Test and measurement equipment (e.g., oscilloscopes, signal generators)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04100SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
