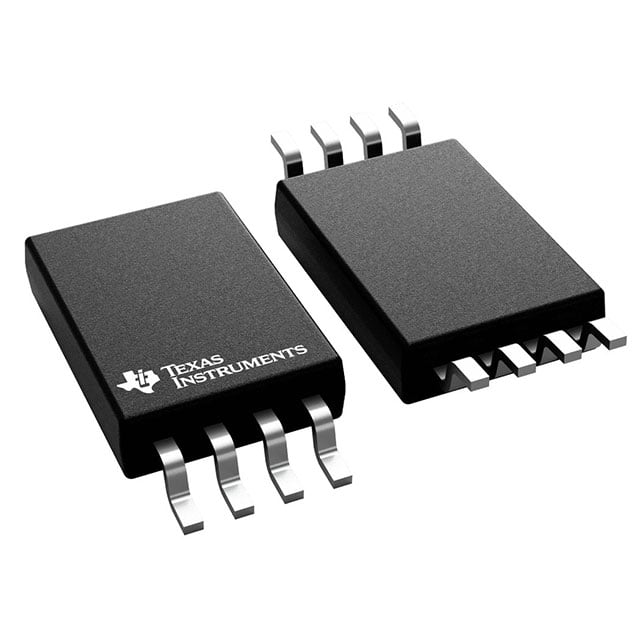

LMK1C1104APWR TI Clock Buffer | 8-TSSOP | 1:4 Fanout, 250MHz

Product Overview

The LMK1C1104APWR from Texas Instruments is a high-performance, low-skew 1:4 clock buffer designed for a wide range of clock distribution applications. It operates from a 1.8V to 3.3V supply and supports clock frequencies up to 250 MHz. The device features a low additive jitter of 0.1 ps RMS (typical) and a low output skew of 50 ps (maximum). Housed in a compact 8-pin TSSOP package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• 1:4 fanout clock buffer
• Low additive jitter: 0.1 ps RMS typical
• Low output skew: 50 ps maximum
• Wide supply voltage range: 1.8V to 3.3V
• High frequency support up to 250 MHz
• LVCMOS outputs
• Small 8-pin TSSOP package
• Industrial temperature range

Target Applications

• 5G base station clock distribution
• Automotive dashboard infotainment systems
• Data center networking equipment
• Industrial automation controllers
• FPGA and ASIC clock buffering

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK1C1104APWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK1C1104APWR 是德州儀器（TI）推出的一款高性能、低偏斜的 1:4 時鐘緩衝器，適用於多種時鐘分配應用。它支持 1.8V 至 3.3V 的電源電壓，最高可處理 250 MHz 的時鐘頻率。該器件具有低附加抖動（典型值 0.1 ps RMS）和低輸出偏斜（最大值 50 ps）。採用緊湊的 8 引腳 TSSOP 封裝，適合空間受限的設計。

詳細技術參數

核心特性

• 1:4 扇出時鐘緩衝器
• 低附加抖動：典型值 0.1 ps RMS
• 低輸出偏斜：最大值 50 ps
• 寬電源電壓範圍：1.8V 至 3.3V
• 支持高達 250 MHz 的高頻
• LVCMOS 輸出
• 小型 8 引腳 TSSOP 封裝
• 工業溫度範圍

典型應用場景

• 5G 基站時鐘分配
• 汽車儀表板信息娛樂系統
• 數據中心網絡設備
• 工業自動化控制器
• FPGA 和 ASIC 時鐘緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK1C1104APWR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
