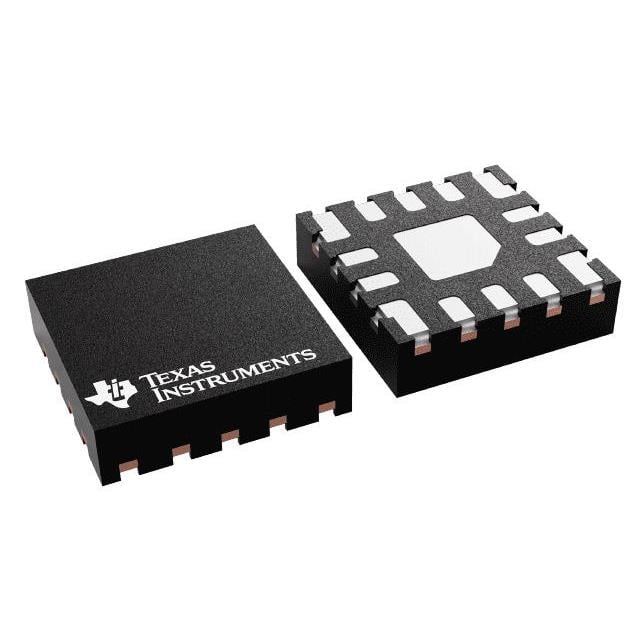

LMQ66410MA5RXBRQ1 TI Buck Converter | 14-VQFN (2.6X2.6) | 36V, 1A, Low IQ

Product Overview

The LMQ66410MA5RXBRQ1 is a high-performance step-down (buck) DC-DC converter from Texas Instruments, designed for automotive and industrial applications. It operates over a wide input voltage range of 3V to 36V and delivers up to 1A of continuous output current. The device is housed in a compact 14-pin VQFN package measuring 2.6mm x 2.6mm, making it ideal for space-constrained designs. With ultra-low quiescent current (IQ) of 2.5µA (typical) in sleep mode, it significantly extends battery life in always-on systems. The LMQ66410MA5RXBRQ1 integrates high-side and low-side MOSFETs, requires minimal external components, and offers excellent transient response and efficiency.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 3V to 36V (42V transient)
• Ultra-low quiescent current: 2.5µA in sleep mode
• High efficiency: up to 95%
• Integrated MOSFETs with low RDS(on)
• Fixed 2.1MHz switching frequency for small solution size
• Spread spectrum for low EMI
• Power Good output
• Enable and soft-start functions
• Protection: overcurrent, overvoltage, undervoltage lockout, thermal shutdown
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive: ADAS cameras, radar modules, infotainment systems, dashboard clusters, body control modules
• Industrial: 5G base station power supplies, factory automation sensors, PLCs, battery-powered equipment
• Consumer: portable devices, IoT gateways, smart home hubs

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMQ66410MA5RXBRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMQ66410MA5RXBRQ1 是德州儀器（TI）推出的一款高性能降壓（buck）DC-DC轉換器，專為汽車和工業應用設計。它可在 3V 至 36V 的寬輸入電壓範圍內工作，並提供高達 1A 的連續輸出電流。該器件採用緊湊的 14 引腳 VQFN 封裝，尺寸僅為 2.6mm x 2.6mm，非常適合空間受限的設計。在睡眠模式下，靜態電流（IQ）低至 2.5µA（典型值），顯著延長了常開系統的電池壽命。LMQ66410MA5RXBRQ1 集成了高側和低側 MOSFET，所需外部元件極少，並具有出色的瞬態響應和效率。

詳細技術參數

核心特性

• 寬輸入電壓範圍：3V 至 36V（瞬態 42V）
• 超低靜態電流：睡眠模式下 2.5µA
• 高效率：高達 95%
• 集成低導通電阻 MOSFET
• 固定 2.1MHz 開關頻率，實現小尺寸解決方案
• 展頻功能，降低 EMI
• 電源正常輸出
• 使能和軟啟動功能
• 保護：過流、過壓、欠壓鎖定、熱關斷
• 通過 AEC-Q100 認證，適用於汽車應用

典型應用場景

• 汽車：ADAS 攝像頭、雷達模塊、信息娛樂系統、儀表盤、車身控制模塊
• 工業：5G 基站電源、工廠自動化傳感器、PLC、電池供電設備
• 消費類：便攜設備、物聯網網關、智能家居中樞

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMQ66410MA5RXBRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
