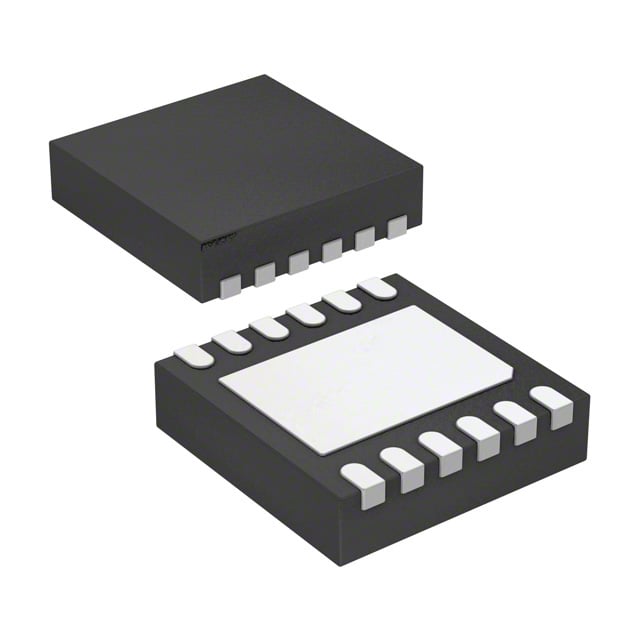

LMR23625CFPQDRRTQ1 TI Step-Down Converter | 12-SON(3x3) | 36V, 2.5A

Product Overview

The LMR23625CFPQDRRTQ1 is a high-performance, automotive-grade step-down (buck) DC-DC converter from Texas Instruments. It operates over a wide input voltage range of 4.5V to 36V and delivers up to 2.5A of continuous output current. Housed in a compact 12-pin SON (3mm x 3mm) package, this device is designed for space-constrained applications requiring high efficiency and reliability. The LMR23625CFPQDRRTQ1 integrates a high-side MOSFET and features peak current-mode control for fast transient response and easy loop compensation. It is AEC-Q100 qualified for automotive applications.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.5V to 36V
• 2.5A continuous output current
• Adjustable switching frequency (400kHz to 2.2MHz)
• Peak current-mode control for fast transient response
• Integrated high-side MOSFET
• High efficiency up to 95%
• Low shutdown current (<2µA)
• Internal compensation and soft-start
• Protection: overcurrent, overtemperature, undervoltage lockout
• AEC-Q100 qualified for automotive

Target Applications

• Automotive infotainment and cluster (e.g., dashboard displays, head units)
• Advanced driver-assistance systems (ADAS) cameras and sensors
• 5G base station power supplies
• Industrial automation and robotics
• Portable and battery-powered equipment
• General-purpose point-of-load regulation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMR23625CFPQDRRTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMR23625CFPQDRRTQ1 是德州儀器（TI）推出的一款高性能、車規級降壓型 DC-DC 轉換器。它支持 4.5V 至 36V 的寬輸入電壓範圍，並可提供高達 2.5A 的連續輸出電流。該器件採用緊湊的 12 引腳 SON（3mm x 3mm）封裝，專為空間受限且需要高效率和高可靠性的應用而設計。LMR23625CFPQDRRTQ1 集成了高側 MOSFET，並採用峰值電流模式控制，實現快速瞬態響應和簡易的環路補償。該器件通過 AEC-Q100 認證，適用於汽車應用。

詳細技術參數

核心特性

• 寬輸入電壓範圍：4.5V 至 36V
• 2.5A 連續輸出電流
• 可調開關頻率（400kHz 至 2.2MHz）
• 峰值電流模式控制，快速瞬態響應
• 集成高側 MOSFET
• 高效率高達 95%
• 低關斷電流（<2µA）
• 內部補償和軟啟動
• 保護：過流、過溫、欠壓鎖定
• 通過 AEC-Q100 車規認證

典型應用場景

• 汽車信息娛樂和儀表盤（例如儀表顯示屏、主機）
• 高級駕駛輔助系統（ADAS）攝像頭和傳感器
• 5G 基站電源
• 工業自動化和機器人
• 便攜式和電池供電設備
• 通用點負載穩壓

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMR23625CFPQDRRTQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
