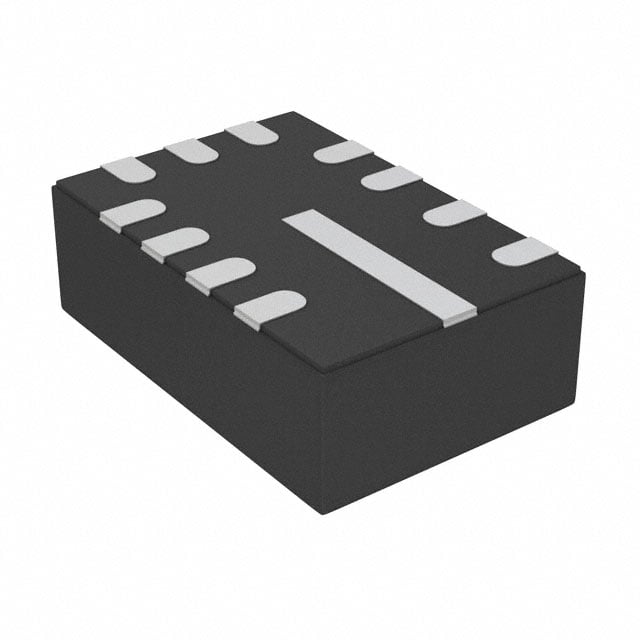

LMR36015FBRNXT TI DC-DC Converter | 12-VQFN-HR (3x2) | 4.2V-60V Input, 1.5A Output

Product Overview

The LMR36015FBRNXT from Texas Instruments is a high-performance, synchronous step-down DC-DC converter designed for industrial and automotive applications. It operates over a wide input voltage range of 4.2V to 60V, delivering up to 1.5A of continuous output current. Housed in a compact 12-pin VQFN-HR package (3mm x 2mm), this device integrates high-side and low-side MOSFETs to achieve high efficiency and small solution size. The LMR36015FBRNXT features a fixed switching frequency of 2.1 MHz, enabling the use of small external inductors and capacitors, and supports pulse frequency modulation (PFM) for light-load efficiency.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.2V to 60V, suitable for 12V, 24V, and 48V systems
• Integrated 150mΩ high-side and 100mΩ low-side MOSFETs
• Fixed 2.1 MHz switching frequency for small external components
• PFM mode for high efficiency at light loads
• Internal soft-start and compensation
• Precision enable input with hysteresis
• Power-good output for sequencing
• Protection: overvoltage, overcurrent, overtemperature, and undervoltage lockout
• Small 12-VQFN-HR package with wettable flanks for optical inspection

Target Applications

• 5G base station power supplies (e.g., remote radio units)
• Automotive infotainment and dashboard systems
• Industrial control and automation equipment
• Battery-powered systems (e.g., e-bikes, power tools)
• Telecom and networking equipment
• LED lighting and display systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMR36015FBRNXT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
