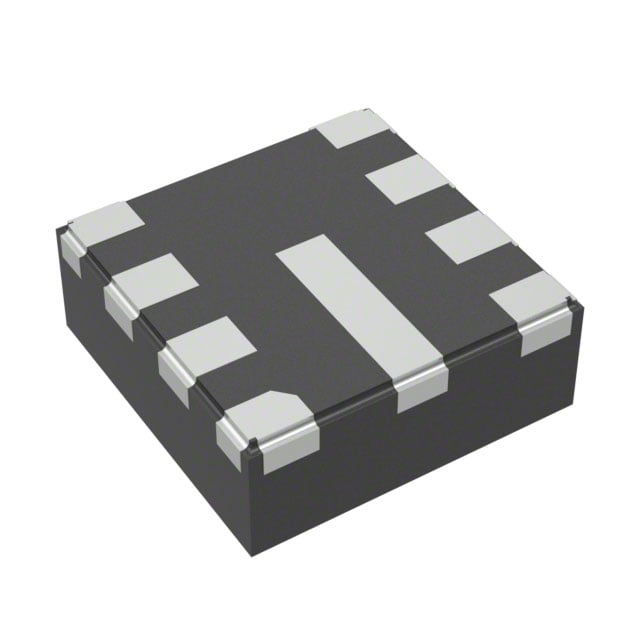

LMR43620MSC5RPERQ1 TI Switching Regulator | 9-VQFN-HR(2x2) | 36V, 2A

Product Overview

The LMR43620MSC5RPERQ1 is a high-performance step-down (buck) switching regulator from Texas Instruments, designed for space-constrained and power-sensitive applications. It operates over a wide input voltage range of 3.5V to 36V and delivers up to 2A of continuous output current. Housed in a compact 9-pin VQFN-HR package (2mm x 2mm), this device integrates high-side and low-side MOSFETs, requiring minimal external components. The regulator features a fixed 5V output voltage with ±1% accuracy, making it ideal for automotive and industrial power rails.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 3.5V to 36V
• 2A continuous output current
• Integrated high-side and low-side MOSFETs
• Fixed 5V output with ±1% accuracy
• 2.1 MHz switching frequency for small solution size
• Low quiescent current: 25 µA
• Built-in protection: overcurrent, overtemperature, undervoltage lockout
• Enable pin for power sequencing
• Power-good output for system monitoring
• Automotive grade: AEC-Q100 qualified

Target Applications

• Automotive: Infotainment systems, ADAS cameras, dashboard clusters (e.g., Tesla Model 3 display)
• Industrial: 5G base station power supplies, factory automation sensors
• Telecom: PoE (Power over Ethernet) powered devices
• Consumer: Portable electronics, battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMR43620MSC5RPERQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMR43620MSC5RPERQ1 是德州儀器（TI）推出的一款高性能降壓開關穩壓器，專為空間受限且對功耗敏感的應用設計。它支援 3.5V 至 36V 的寬輸入電壓範圍，並可提供高達 2A 的連續輸出電流。該器件採用緊湊的 9 引腳 VQFN-HR 封裝（2mm x 2mm），內部整合了高側和低側 MOSFET，所需外部元件極少。穩壓器具有固定的 5V 輸出電壓，精度為 ±1%，非常適合汽車和工業電源軌。

詳細技術參數

核心特性

• 寬輸入電壓範圍：3.5V 至 36V
• 2A 連續輸出電流
• 整合高側和低側 MOSFET
• 固定 5V 輸出，精度 ±1%
• 2.1 MHz 開關頻率，實現小尺寸解決方案
• 低靜態電流：25 µA
• 內建保護：過流、過溫、欠壓鎖定
• 使能引腳，用於電源排序
• 電源正常輸出，用於系統監控
• 汽車級：通過 AEC-Q100 認證

典型應用場景

• 汽車：資訊娛樂系統、ADAS 攝像頭、儀表板（例如 Tesla Model 3 顯示屏）
• 工業：5G 基站電源、工廠自動化傳感器
• 電信：PoE（以太網供電）設備
• 消費類：便攜式電子產品、電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMR43620MSC5RPERQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
