LMX2470SLEX TI PLL with VCO | 24-ULGA (4.5x3.5) | 6.4 GHz, 3.3V

Product Overview

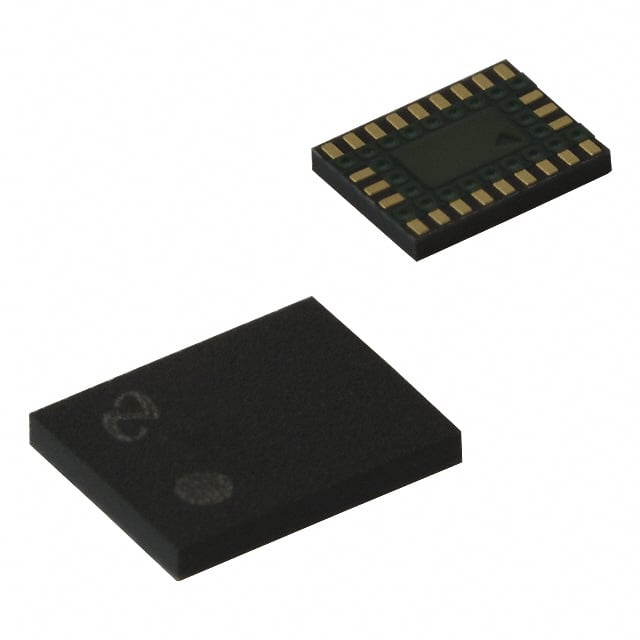

The LMX2470SLEX is a high-performance, fully integrated phase-locked loop (PLL) with voltage-controlled oscillator (VCO) from Texas Instruments. Designed for demanding RF applications, it operates from 2.5 GHz to 6.4 GHz with a single 3.3V supply. The device features low phase noise, fast settling time, and a compact 24-pin ULGA package (4.5 mm x 3.5 mm), making it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Fully integrated VCO and PLL in a single chip
• Low phase noise: -110 dBc/Hz at 100 kHz offset (5.8 GHz)
• Fast lock time: < 100 µs
• Programmable charge pump current
• Digital lock detect output
• Power-down mode for power saving
• Small footprint: 24-ULGA (4.5 mm x 3.5 mm)

Target Applications

• 5G base station local oscillators (e.g., for massive MIMO transceivers)
• Wireless infrastructure (e.g., microwave backhaul links)
• Test and measurement equipment (e.g., spectrum analyzers)
• Satellite communications (e.g., VSAT terminals)
• Radar systems (e.g., automotive radar modules)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMX2470SLEX. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
