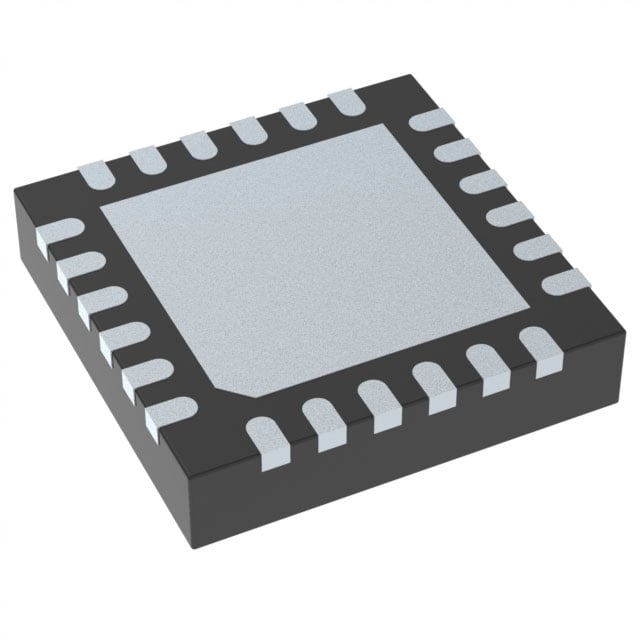

LMX2485SQ/NOPB TI PLLatinum Frequency Synthesizer | 24-WQFN (4x4) | 3.6GHz, Low Phase Noise

Product Overview

The LMX2485SQ/NOPB is a high-performance, low-power frequency synthesizer from Texas Instruments' PLLatinum™ family. It integrates a delta-sigma fractional-N PLL with a VCO, offering excellent phase noise performance and frequency coverage up to 3.6 GHz. The device operates from a 3.3V supply and is housed in a compact 24-pin WQFN (4x4 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Fractional-N and integer-N modes
• Low phase noise: -112 dBc/Hz at 100 kHz offset
• Programmable charge pump current
• Fast lock time with cycle slip reduction
• Digital lock detect output
• 3-wire serial interface
• Power-down mode for power saving

Target Applications

• 5G base stations (e.g., remote radio units)
• Wireless infrastructure (e.g., small cells, repeaters)
• Test and measurement equipment (e.g., spectrum analyzers)
• Satellite communications (e.g., LNB local oscillators)
• Radar systems (e.g., automotive radar)
