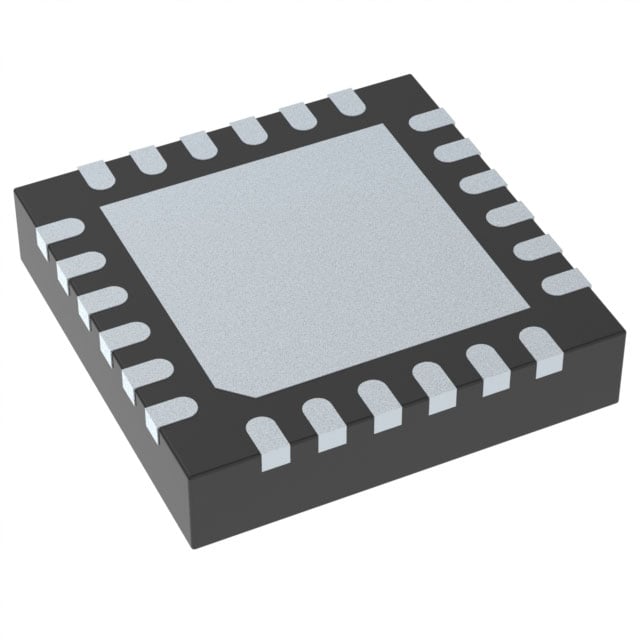

LMX2486SQ/NOPB TI PLLatinum Frequency Synthesizer | 24-WQFN (4x4) | 6.0 GHz, Low Phase Noise

Product Overview

The LMX2486SQ/NOPB is a high-performance, low-power frequency synthesizer from Texas Instruments, part of the PLLatinum™ series. It integrates a delta-sigma fractional-N PLL with a voltage-controlled oscillator (VCO) and supports frequencies up to 6.0 GHz. The device is housed in a compact 24-pin WQFN (4x4 mm) package, making it ideal for space-constrained applications. It features ultra-low phase noise and spurious performance, enabling high-quality signal generation for demanding RF systems.

Detailed Technical Specifications

Key Features

• Fractional-N and integer-N modes
• Ultra-low phase noise: -112 dBc/Hz at 100 kHz offset (5.8 GHz)
• Integrated VCO with wide tuning range
• Programmable charge pump current
• Fast lock time with cycle slip reduction
• Low power consumption: 23 mA typical
• Small footprint: 4x4 mm WQFN package
• Digital lock detect output

Target Applications

• 5G base station local oscillators (e.g., for massive MIMO transceivers)
• Wireless infrastructure (e.g., remote radio heads)
• Test and measurement equipment (e.g., spectrum analyzers)
• Satellite communications terminals
• Radar systems (e.g., automotive radar)
• Point-to-point microwave backhaul

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMX2486SQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
