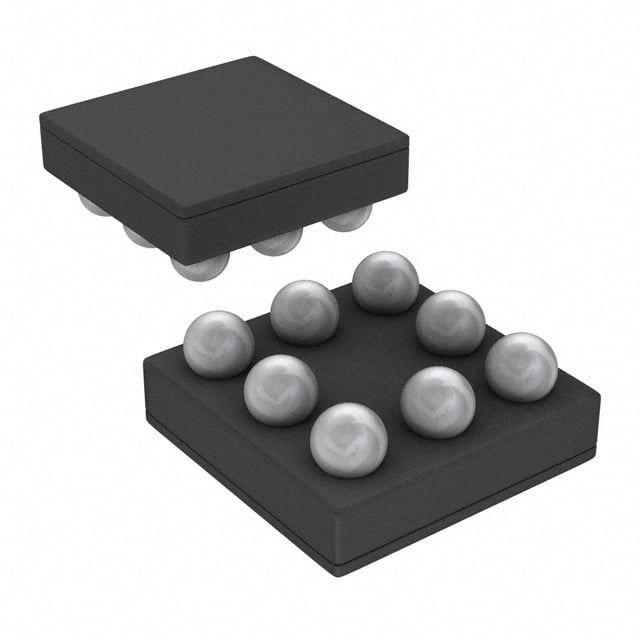

LP3986TL-2518/NOPB TI LDO Voltage Regulator | 8-DSBGA (1.56x1.56) | Dual Output, 250mA, Low Noise

Product Overview

The LP3986TL-2518/NOPB is a high-performance, dual-output low-dropout (LDO) voltage regulator from Texas Instruments. It provides two independent regulated outputs: 2.5V and 1.8V, each capable of delivering up to 250mA of load current. Housed in a compact 8-DSBGA (1.56x1.56mm) package, this device is ideal for space-constrained applications requiring low noise and high power supply rejection ratio (PSRR). The LP3986 features a low dropout voltage of typically 120mV at full load, enabling efficient operation even with small input-to-output voltage differentials. Its low quiescent current (30µA typical per channel) makes it suitable for battery-powered devices. The device also includes enable pins for each output, allowing independent power management.

Detailed Technical Specifications

Key Features

• Dual independent LDO outputs: 2.5V and 1.8V
• Low dropout voltage: 120mV typical at 250mA
• Low quiescent current: 30µA per channel
• High PSRR: 60dB at 1kHz
• Low output noise: 30µVrms
• Independent enable pins for each output
• Thermal shutdown and current limit protection
• Small 8-DSBGA package (1.56x1.56mm)

Target Applications

The LP3986TL-2518/NOPB is designed for a wide range of applications requiring dual low-noise power supplies. Specific examples include:

• 5G base stations: Powering RF transceivers and baseband processors (e.g., TI's TMS320C6678 DSP)
• Automotive dashboard systems: Supplying clean power to infotainment processors (e.g., Qualcomm Snapdragon SA8155P)
• Portable medical devices: Powering sensor interfaces and microcontrollers (e.g., STM32L4 series)
• Industrial IoT modules: Regulating power for wireless communication chips (e.g., Nordic nRF52840)
• Consumer electronics: Noise-sensitive audio codecs (e.g., TI's PCM5122)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP3986TL-2518/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP3986TL-2518/NOPB 是德州儀器（TI）推出的一款高性能雙輸出低壓差線性穩壓器（LDO）。它提供兩個獨立的穩壓輸出：2.5V 和 1.8V，每個輸出可提供高達 250mA 的負載電流。器件採用緊湊的 8-DSBGA（1.56x1.56mm）封裝，非常適合需要低噪聲和高電源抑制比（PSRR）的空間受限應用。LP3986 在滿載時典型壓差僅為 120mV，即使在輸入輸出電壓差較小的情況下也能高效工作。其低靜態電流（每通道典型值 30µA）使其適用於電池供電設備。器件還包含每個輸出的使能引腳，支持獨立的電源管理。

詳細技術參數

核心特性

• 雙獨立 LDO 輸出：2.5V 和 1.8V
• 低壓差：250mA 時典型值 120mV
• 低靜態電流：每通道 30µA
• 高 PSRR：1kHz 時 60dB
• 低輸出噪聲：30µVrms
• 每個輸出獨立使能引腳
• 熱關斷和電流限制保護
• 小型 8-DSBGA 封裝（1.56x1.56mm）

典型應用場景

LP3986TL-2518/NOPB 適用於需要雙低噪聲電源的廣泛應用。具體實例包括：

• 5G 基站：為射頻收發器和基帶處理器供電（例如 TI 的 TMS320C6678 DSP）
• 汽車儀表板系統：為信息娛樂處理器提供乾淨電源（例如 Qualcomm Snapdragon SA8155P）
• 便攜式醫療設備：為傳感器接口和微控制器供電（例如 STM32L4 系列）
• 工業物聯網模塊：為無線通信芯片穩壓（例如 Nordic nRF52840）
• 消費電子產品：噪聲敏感的音頻編解碼器（例如 TI 的 PCM5122）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP3986TL-2518/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
