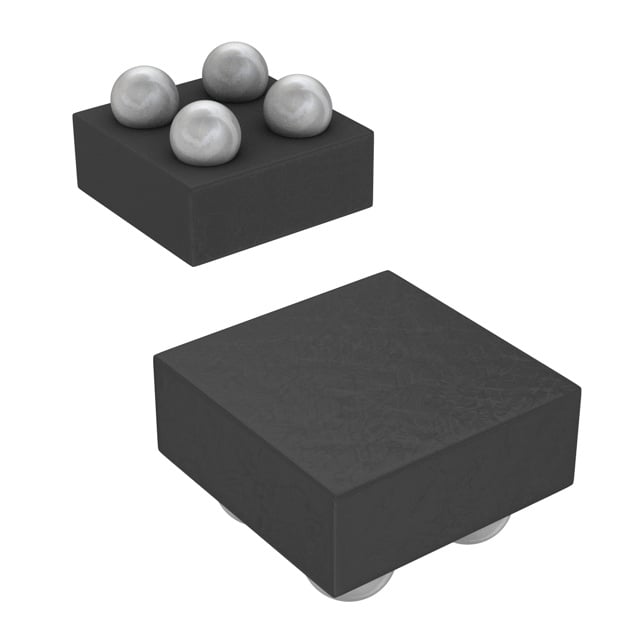

LP3990TL-0.8/NOPB TI LDO Regulator | 4-DSBGA (1x1) | 0.8V Fixed Output, 150mA

Product Overview

The LP3990TL-0.8/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 0.8V with a maximum output current of 150mA. Housed in a compact 4-DSBGA (1x1 mm) package, it is designed for space-constrained applications requiring high performance and low noise. The device features a low dropout voltage of typically 120mV at full load, excellent line and load transient response, and a low quiescent current of 25µA. It also includes enable logic, overcurrent protection, and thermal shutdown, making it a robust solution for powering sensitive analog and digital circuits.

Detailed Technical Specifications

Key Features

• Fixed 0.8V output voltage
• 150mA output current capability
• Low dropout voltage: 120mV at 150mA
• Low quiescent current: 25µA
• High PSRR: 60dB at 1kHz
• Enable pin for power sequencing
• Overcurrent and thermal protection
• Stable with ceramic capacitors
• Ultra-small 4-DSBGA package (1x1 mm)

Target Applications

The LP3990TL-0.8/NOPB is ideal for powering low-voltage digital cores, analog sensors, and RF circuits in applications such as:

• 5G base station power management (e.g., powering FPGA core voltage)
• Automotive dashboard displays (e.g., infotainment system processor)
• Portable medical devices (e.g., glucose meter microcontroller)
• IoT modules (e.g., Bluetooth Low Energy SoC)
• Industrial sensors (e.g., pressure transmitter)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP3990TL-0.8/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP3990TL-0.8/NOPB 是德州儀器（TI）推出的低壓差線性穩壓器（LDO），提供固定的 0.8V 輸出電壓，最大輸出電流為 150mA。採用緊湊的 4-DSBGA（1x1 mm）封裝，專為空間受限且需要高性能和低噪聲的應用而設計。該器件具有典型的 120mV（滿載時）低壓差電壓、出色的線性和負載瞬態響應以及 25µA 的低靜態電流。它還包含使能邏輯、過流保護和熱關斷功能，是為敏感模擬和數字電路供電的可靠解決方案。

詳細技術參數

核心特性

• 固定 0.8V 輸出電壓
• 150mA 輸出電流能力
• 低壓差電壓：150mA 時 120mV
• 低靜態電流：25µA
• 高 PSRR：1kHz 時 60dB
• 使能引腳用於電源排序
• 過流和熱保護
• 與陶瓷電容器穩定工作
• 超小型 4-DSBGA 封裝（1x1 mm）

典型應用場景

LP3990TL-0.8/NOPB 非常適合為低電壓數字內核、模擬傳感器和射頻電路供電，應用包括：

• 5G 基站電源管理（例如為 FPGA 內核電壓供電）
• 汽車儀表板顯示（例如信息娛樂系統處理器）
• 便攜式醫療設備（例如血糖儀微控制器）
• 物聯網模塊（例如藍牙低功耗 SoC）
• 工業傳感器（例如壓力變送器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP3990TL-0.8/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
