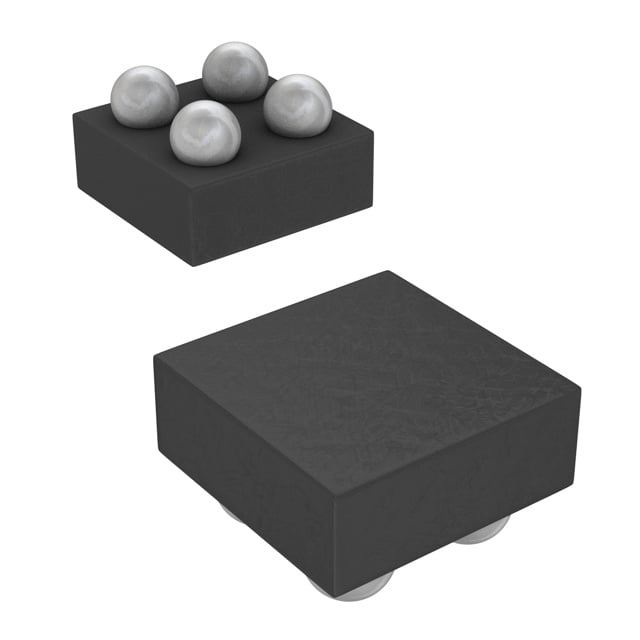

LP3991TLX-1.3/NOPB TI LDO Regulator | 4-DSBGA (1x1) | 1.3V Fixed Output, 300mA

Product Overview

The LP3991TLX-1.3/NOPB is a high-performance, low-dropout (LDO) linear voltage regulator from Texas Instruments, designed to deliver a fixed 1.3V output with a maximum current of 300mA. Housed in a compact 4-DSBGA (1x1 mm) package, this device is ideal for space-constrained applications requiring low noise and high power supply rejection ratio (PSRR). The LP3991 features a low quiescent current of 30 µA (typical) and a dropout voltage of only 120 mV at 300 mA load, making it suitable for battery-powered and portable electronics. With an input voltage range from 1.8V to 5.5V, it supports a wide variety of power sources. The device includes overcurrent and thermal shutdown protection, ensuring reliable operation under fault conditions.

Detailed Technical Specifications

Key Features

• Fixed 1.3V output voltage with ±2% accuracy
• Low dropout voltage: 120 mV at 300 mA
• Low quiescent current: 30 µA typical
• High PSRR: 60 dB at 1 kHz
• Low output noise: 30 µVrms
• Overcurrent and thermal shutdown protection
• Stable with ceramic output capacitors (1 µF)
• Ultra-small 4-DSBGA package (1x1 mm)

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose monitors, pulse oximeters)
• IoT sensors and wearables (e.g., smartwatches, fitness trackers)
• Industrial control modules (e.g., PLCs, sensor interfaces)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP3991TLX-1.3/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP3991TLX-1.3/NOPB 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO），可提供固定的 1.3V 輸出電壓和最高 300mA 的輸出電流。該器件採用緊湊的 4-DSBGA（1x1 mm）封裝，非常適合需要低噪聲和高電源抑制比（PSRR）的空間受限應用。LP3991 的典型靜態電流僅為 30 µA，在 300mA 負載下的壓差電壓僅為 120 mV，使其非常適合電池供電和便攜式電子設備。輸入電壓範圍為 1.8V 至 5.5V，支持多種電源。器件包含過流和熱關斷保護，確保在故障條件下可靠運行。

詳細技術參數

核心特性

• 固定 1.3V 輸出電壓，精度 ±2%
• 低壓差：120 mV @ 300 mA
• 低靜態電流：典型值 30 µA
• 高 PSRR：60 dB @ 1 kHz
• 低輸出噪聲：30 µVrms
• 過流和熱關斷保護
• 與陶瓷輸出電容（1 µF）穩定工作
• 超小型 4-DSBGA 封裝（1x1 mm）

典型應用場景

• 5G 基站電源管理（例如為射頻收發器供電）
• 汽車儀表板顯示和信息娛樂系統
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 物聯網傳感器和可穿戴設備（例如智能手錶、健身追蹤器）
• 工業控制模塊（例如 PLC、傳感器接口）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP3991TLX-1.3/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
