LP5814YCHR TI LED Driver | 8-DSBGA (0.66x1.36) | 4-Channel, I2C, 1.5V-5.5V

Product Overview

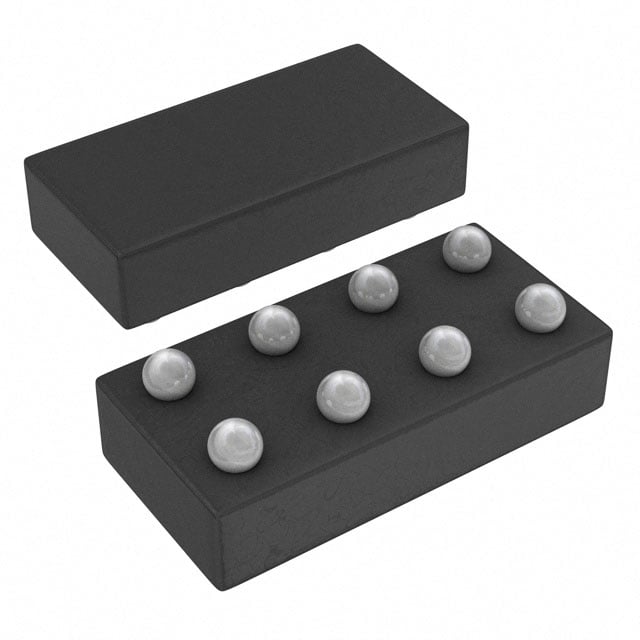

The LP5814YCHR from Texas Instruments is a high-performance, 4-channel LED driver designed for portable and compact applications. Housed in an ultra-small 8-DSBGA package (0.66mm x 1.36mm), it integrates I2C-controlled constant current sinks with programmable brightness and blinking patterns. Operating from 1.5V to 5.5V, it delivers up to 25mA per channel with low dropout voltage, making it ideal for battery-powered devices.

Detailed Technical Specifications

Key Features

• Ultra-small 8-DSBGA package saves PCB space
• I2C interface for independent control of each channel
• Programmable current, brightness, and blinking patterns
• Low quiescent current (0.5 µA) extends battery life
• Low dropout voltage ensures efficient operation
• Built-in thermal shutdown and overcurrent protection

Target Applications

• Smartphone notification LEDs (e.g., Samsung Galaxy S series)
• Wearable device indicators (e.g., Fitbit Charge 5)
• Portable medical devices (e.g., glucose monitor displays)
• IoT sensor modules (e.g., temperature/humidity sensors)
• 5G base station status indicators
• Automotive dashboard backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5814YCHR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
