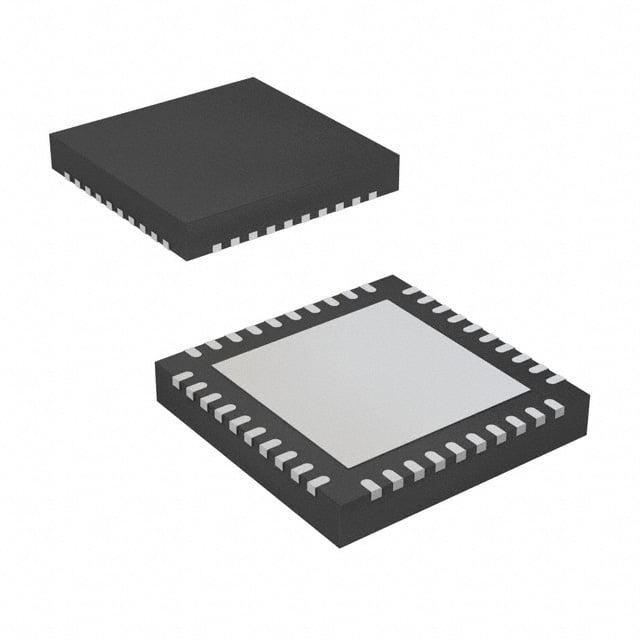

LP5866TMRKPR TI LED Driver | 40-VQFN (5X5) | 48-Channel, 16-Bit PWM

Product Overview

The LP5866TMRKPR is a high-performance 48-channel LED driver from Texas Instruments, designed for precise current control and advanced lighting effects. Housed in a compact 40-VQFN (5x5 mm) package, it integrates 16-bit PWM dimming and 12-bit analog current adjustment, enabling smooth, flicker-free illumination. With a wide output voltage range and robust fault protection, this device is ideal for demanding automotive, industrial, and display applications.

Detailed Technical Specifications

Key Features

• 48 independent LED channels with 16-bit PWM for smooth dimming
• 12-bit analog current adjustment for fine brightness control
• I2C interface with programmable addressing
• Built-in fault detection (open/short LED, overtemperature)
• Low quiescent current (typical 2 mA)
• Spread spectrum clocking for EMI reduction
• Automotive-grade (AEC-Q100 qualified)

Target Applications

• Automotive lighting: Daytime running lights (DRLs), taillights, interior ambient lighting (e.g., Tesla Model 3 dashboard)
• Industrial displays: LED matrix panels for factory automation (e.g., Siemens HMI panels)
• 5G base station status indicators (e.g., Nokia AirScale)
• Smart home lighting: RGBW LED strips (e.g., Philips Hue)
• Medical equipment: Patient monitoring display backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5866TMRKPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
