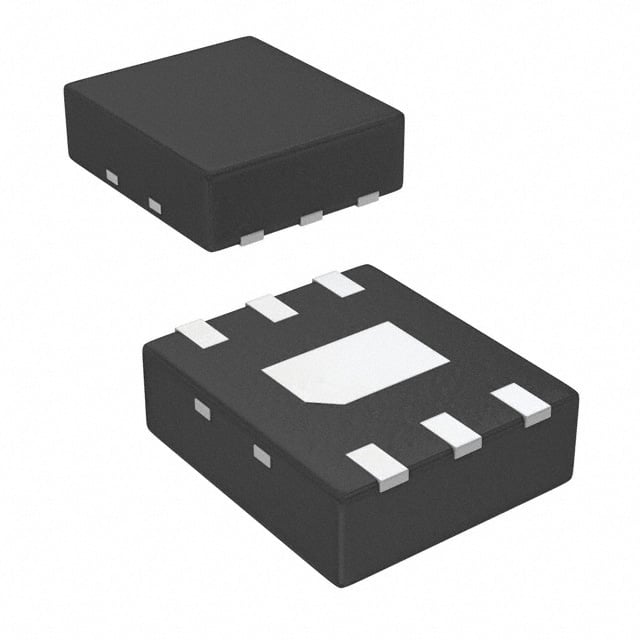

LP5900SDX-2.5/NOPB TI LDO Regulator | 6-WSON (2.2x2.5) | 2.5V Output, 150mA

Product Overview

The LP5900SDX-2.5/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, designed to deliver a fixed 2.5V output with a maximum current of 150mA. Housed in a compact 6-WSON (2.2x2.5mm) package, it offers excellent line and load regulation, low quiescent current, and high PSRR, making it ideal for noise-sensitive applications. The device features a low dropout voltage of typically 120mV at full load, enabling efficient operation even with small input-to-output voltage differentials. With an enable pin for power sequencing and thermal shutdown protection, the LP5900SDX-2.5/NOPB ensures reliable performance in space-constrained designs.

Detailed Technical Specifications

Key Features

• Fixed 2.5V output with ±2% accuracy
• Low dropout voltage: 120mV typical at 150mA
• Low quiescent current: 25µA typical
• High PSRR: 85dB at 1kHz
• Low output noise: 30µVrms
• Enable pin for power sequencing
• Thermal shutdown and current limit protection
• Stable with ceramic capacitors (1µF typical)
• Small 6-WSON package (2.2x2.5mm)

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable battery-powered devices (e.g., wearables, IoT sensors)
• Industrial sensor modules requiring low noise
• Medical devices (e.g., portable monitors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5900SDX-2.5/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP5900SDX-2.5/NOPB 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的 2.5V 輸出，最大輸出電流為 150mA。該器件採用緊湊的 6-WSON（2.2x2.5mm）封裝，具有優異的線性和負載調整率、低靜態電流以及高電源抑制比（PSRR），非常適合噪聲敏感型應用。在滿載條件下，典型壓差電壓僅為 120mV，即使輸入輸出電壓差很小也能高效工作。該器件配備使能引腳用於電源排序，並具有熱關斷保護功能，確保在空間受限的設計中可靠運行。

詳細技術參數

核心特性

• 固定 2.5V 輸出，精度 ±2%
• 低壓差：典型值 120mV @ 150mA
• 低靜態電流：典型值 25µA
• 高 PSRR：85dB @ 1kHz
• 低輸出噪聲：30µVrms
• 使能引腳，支持電源排序
• 熱關斷和電流限制保護
• 可與陶瓷電容穩定工作（典型值 1µF）
• 小型 6-WSON 封裝（2.2x2.5mm）

典型應用場景

• 5G 基站電源管理（例如為射頻收發器供電）
• 汽車儀表板顯示和信息娛樂系統
• 便攜式電池供電設備（例如可穿戴設備、物聯網傳感器）
• 需要低噪聲的工業傳感器模塊
• 醫療設備（例如便攜式監護儀）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP5900SDX-2.5/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
