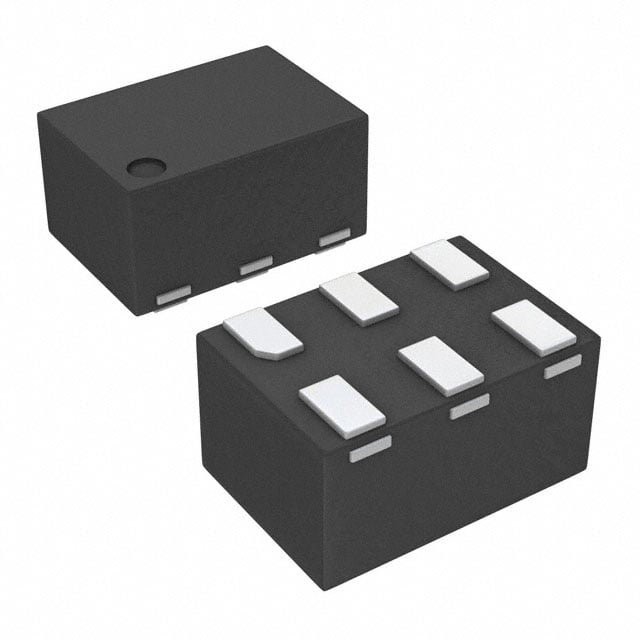

LP5952LC-1.8/NOPB TI LDO Regulator | 6-USON(2x2) | 1.8V Fixed Output, 350mA

Product Overview

The LP5952LC-1.8/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 1.8V with a maximum output current of 350mA. Housed in a compact 6-pin USON package (2mm x 2mm), this device is designed for space-constrained applications requiring high power-supply rejection ratio (PSRR) and low noise. The LP5952LC-1.8/NOPB features a low dropout voltage of typically 120mV at full load, making it suitable for battery-powered systems. It includes enable logic, current limit, and thermal shutdown protection. The device operates over a wide input voltage range from 2.2V to 5.5V, and is specified for the industrial temperature range of -40°C to +125°C.

Detailed Technical Specifications

Key Features

• Fixed 1.8V output with ±2% accuracy
• Low dropout voltage: 120mV at 350mA
• High PSRR: 70dB at 1kHz
• Low output noise: 30µVrms
• Low quiescent current: 40µA
• Enable pin for power sequencing
• Current limit and thermal shutdown protection
• Stable with ceramic capacitors (1µF)
• Small 6-USON package (2mm x 2mm)

Target Applications

• 5G base stations: Powering RF transceivers and PLLs
• Automotive dashboard: Supply for infotainment and cluster processors
• Portable medical devices: Glucose meters, pulse oximeters
• Industrial sensors: Pressure transmitters, temperature probes
• IoT modules: Bluetooth Low Energy, Zigbee, LoRa
• Battery-powered equipment: Smartphones, wearables

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5952LC-1.8/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP5952LC-1.8/NOPB 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的1.8V輸出電壓，最大輸出電流為350mA。該器件採用緊湊的6引腳USON封裝（2mm x 2mm），專為需要高電源抑制比（PSRR）和低噪聲的空間受限應用而設計。LP5952LC-1.8/NOPB 在滿載時典型壓差僅為120mV，非常適合電池供電系統。它包含使能邏輯、電流限制和熱關斷保護功能。器件工作輸入電壓範圍為2.2V至5.5V，工業溫度範圍為-40°C至+125°C。

詳細技術參數

核心特性

• 固定1.8V輸出，精度±2%
• 低壓差：350mA時典型120mV
• 高PSRR：1kHz時70dB
• 低輸出噪聲：30µVrms
• 低靜態電流：40µA
• 使能引腳用於電源排序
• 電流限制和熱關斷保護
• 與陶瓷電容（1µF）穩定工作
• 小型6-USON封裝（2mm x 2mm）

典型應用場景

• 5G基站：為射頻收發器和鎖相環供電
• 汽車儀表盤：為信息娛樂和集群處理器供電
• 便攜式醫療設備：血糖儀、脈搏血氧儀
• 工業傳感器：壓力變送器、溫度探頭
• 物聯網模塊：藍牙低功耗、Zigbee、LoRa
• 電池供電設備：智能手機、可穿戴設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP5952LC-1.8/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
