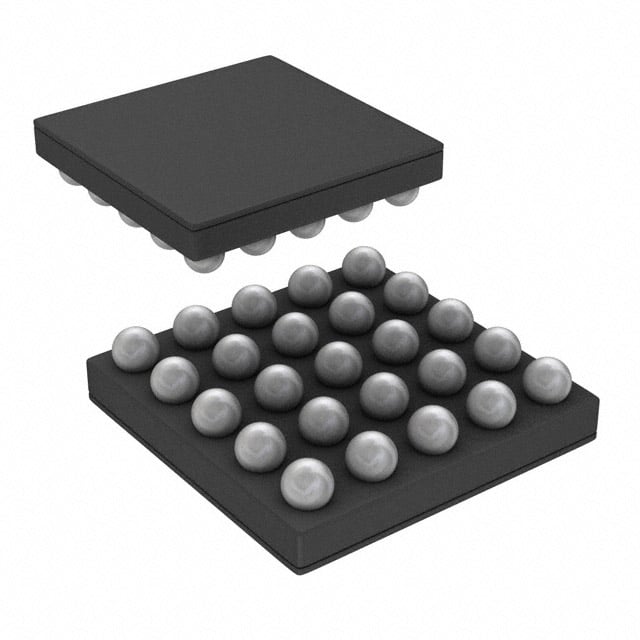

LP8551TLX-A/NOPB TI LED Driver | 25-DSBGA | 6-Channel, Boost, PWM Dimming

Product Overview

The LP8551TLX-A/NOPB is a high-efficiency, 6-channel white LED driver from Texas Instruments, designed for backlighting applications in portable devices. It integrates a boost converter with current sinks to drive up to 6 strings of LEDs in parallel, with programmable PWM dimming for precise brightness control. The device operates from a 2.7V to 5.5V input voltage range and can boost up to 40V, making it suitable for small to medium-sized LCD panels. Housed in a compact 25-DSBGA package (2.0mm x 2.0mm), it offers a space-saving solution for slim designs.

Detailed Technical Specifications

Key Features

• Integrated boost converter with 40V maximum output
• 6-channel current sinks with ±2% current matching
• PWM dimming interface with 30kHz maximum frequency
• Programmable overvoltage protection (OVP)
• Automatic string detection and open/short LED protection
• Low quiescent current (0.3μA in shutdown)
• Small 25-DSBGA package for space-constrained designs

Target Applications

• Smartphone and tablet LCD backlighting (e.g., Samsung Galaxy Tab, Apple iPad)
• Portable navigation devices (e.g., Garmin GPS units)
• Automotive infotainment displays (e.g., Tesla Model 3 center console)
• Industrial handheld terminals (e.g., Zebra TC52)
• 5G base station status indicator panels

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP8551TLX-A/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
