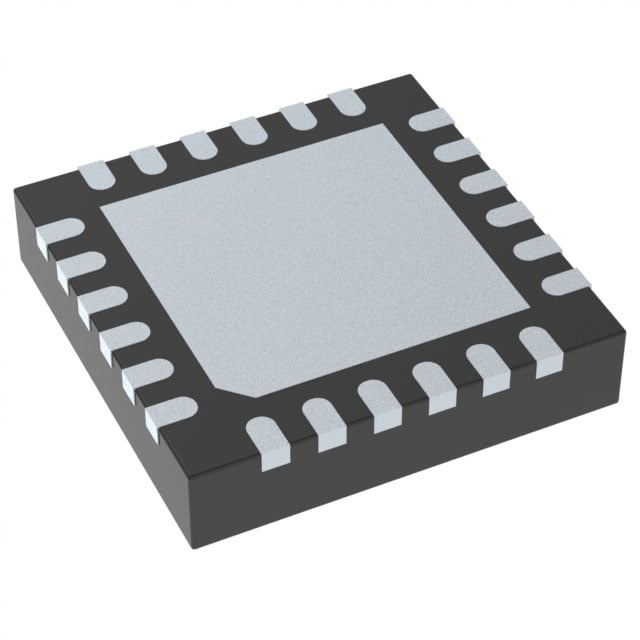

LP8556SQE-E09/NOPB TI LED Driver | 24-WQFN (4x4) | 6-Channel, Boost, PWM Dimming

Product Overview

The LP8556SQE-E09/NOPB is a high-efficiency, 6-channel white LED driver from Texas Instruments, designed for large-size LCD panel backlighting. It integrates a boost converter with programmable output voltage up to 40V, and each channel can drive up to 10 LEDs in series. The device features PWM dimming with a frequency range of 100Hz to 30kHz, and supports both analog and PWM dimming modes. Housed in a compact 24-pin WQFN (4x4mm) package, it offers excellent thermal performance and space savings for space-constrained applications.

Detailed Technical Specifications

Key Features

• 6-channel high-efficiency LED driver with integrated boost converter
• Programmable output voltage up to 40V
• PWM dimming with 1000:1 ratio
• Analog dimming via external resistor
• Built-in over-voltage, over-current, and thermal protection
• I2C interface for flexible control
• Low quiescent current (1.5mA typical)
• Small 4x4mm WQFN package

Target Applications

• LCD TV backlighting (e.g., 55-inch 4K TV)
• Monitor backlighting (e.g., 27-inch desktop monitor)
• Notebook display backlighting (e.g., 15.6-inch laptop)
• Automotive display backlighting (e.g., 12.3-inch dashboard display)
• Industrial display backlighting (e.g., 10.1-inch HMI panel)
• 5G base station status indicator lighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP8556SQE-E09/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP8556SQE-E09/NOPB 是德州儀器（TI）推出的一款高效率、6通道白光LED驅動器，專為大尺寸LCD面板背光設計。它集成了升壓轉換器，可編程輸出電壓高達40V，每個通道可驅動多達10顆串聯LED。該器件支持PWM調光，頻率範圍100Hz至30kHz，並支持模擬和PWM調光模式。採用緊湊的24引腳WQFN（4x4mm）封裝，在空間受限的應用中提供出色的熱性能和節省空間的優勢。

詳細技術參數

核心特性

• 6通道高效率LED驅動器，集成升壓轉換器
• 可編程輸出電壓高達40V
• PWM調光，調光比1000:1
• 通過外部電阻實現模擬調光
• 內置過壓、過流和過熱保護
• I2C接口，靈活控制
• 低靜態電流（典型值1.5mA）
• 小型4x4mm WQFN封裝

典型應用場景

• LCD電視背光（例如55英寸4K電視）
• 顯示器背光（例如27英寸桌面顯示器）
• 筆記本電腦顯示屏背光（例如15.6英寸筆記本）
• 汽車顯示屏背光（例如12.3英寸儀表盤顯示屏）
• 工業顯示屏背光（例如10.1英寸HMI面板）
• 5G基站狀態指示燈

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP8556SQE-E09/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
