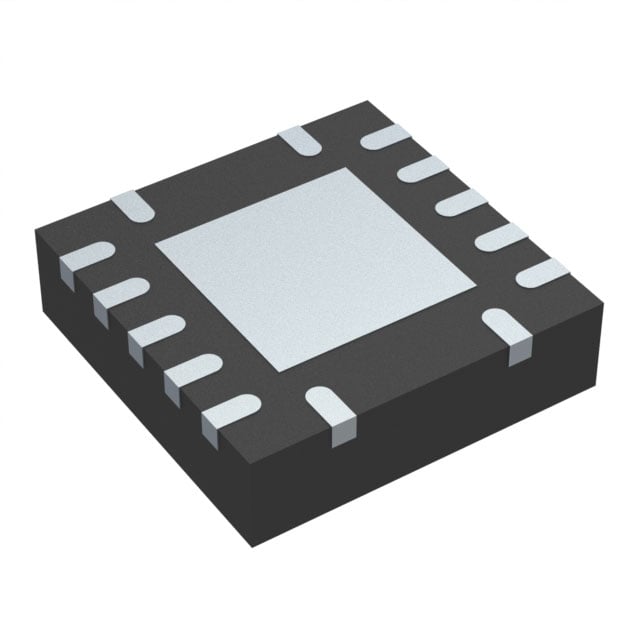

LSF0204RGYR TI Level Translator | 14-VQFN(3.5x3.5) | 4-Bit, 1.0-5.5V

Product Overview

The LSF0204RGYR from Texas Instruments is a 4-bit bidirectional multi-voltage level translator designed for open-drain and push-pull applications. It operates over a wide voltage range from 1.0V to 5.5V on both the A and B ports, making it ideal for interfacing between different voltage domains in mixed-voltage systems. The device features a 14-pin VQFN package (3.5mm x 3.5mm) with a compact footprint, suitable for space-constrained designs. It supports high-speed data rates up to 100 MHz and provides excellent signal integrity with low propagation delay.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation without direction control
• Supports open-drain and push-pull outputs
• Low quiescent current (10 µA typical)
• High drive capability: ±24 mA at 3.3V
• Power-off high-impedance outputs
• Glitch-free power sequencing
• RoHS compliant and lead-free

Target Applications

• 5G base station control interfaces (e.g., FPGA to RF transceiver)
• Automotive dashboard displays (e.g., MCU to LCD driver)
• Industrial sensor networks (e.g., I2C/SMBus level shifting)
• Portable electronics (e.g., battery management IC communication)
• Networking equipment (e.g., Ethernet PHY to SoC)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LSF0204RGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
