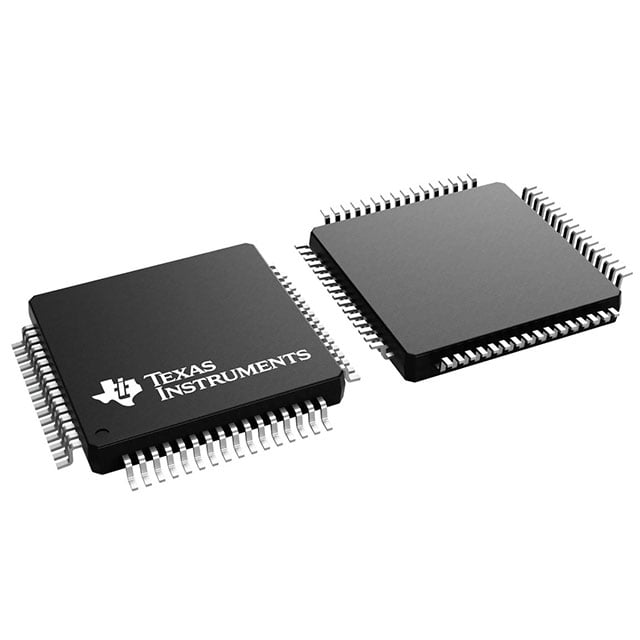

MSPM0G1505SPMR TI Microcontroller | 64-LQFP (10x10) | 80MHz ARM Cortex-M0+, 128KB Flash

Product Overview

The MSPM0G1505SPMR is a high-performance, low-power 32-bit microcontroller from Texas Instruments' MSPM0G series. It features an ARM Cortex-M0+ core running at up to 80 MHz, with 128 KB of flash memory and 16 KB of SRAM. Housed in a compact 64-pin LQFP package (10x10 mm), this device is designed for cost-sensitive and power-constrained applications requiring advanced analog integration and real-time control capabilities.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with single-cycle multiplier and fast interrupt handling
• Integrated precision analog: 12-bit ADC with hardware oversampling, 12-bit DAC, and dual comparators
• Flexible clock system with internal 32 MHz oscillator and external crystal support
• Up to 52 GPIOs with configurable pull-up/pull-down and interrupt capability
• Communication peripherals: 4x UART, 4x SPI, 2x I2C, 1x CAN-FD controller
• Enhanced DMA controller for data transfer without CPU intervention
• Hardware security features: 128-bit unique device ID, CRC accelerator, and memory protection unit
• Ultra-low power consumption: 90 µA/MHz in active mode, 1 µA in standby with RTC

Target Applications

• Industrial control and automation (e.g., PLC I/O modules, motor drives)
• Building automation (e.g., smart thermostats, lighting controllers)
• Consumer electronics (e.g., smart home hubs, wearable devices)
• Automotive aftermarket (e.g., dashboard displays, sensor modules)
• 5G base station power management and monitoring
• Medical devices (e.g., portable diagnostic equipment)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MSPM0G1505SPMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MSPM0G1505SPMR 是德州儀器 MSPM0G 系列的一款高性能、低功耗 32 位微控制器。它採用 ARM Cortex-M0+ 內核，最高運行頻率 80 MHz，配備 128 KB 閃存和 16 KB SRAM。該器件採用緊湊的 64 引腳 LQFP 封裝（10x10 mm），專為需要先進模擬集成和實時控制能力的成本敏感型及功耗受限型應用而設計。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，支持單週期乘法和快速中斷處理
• 集成精密模擬：12 位 ADC（硬件過採樣）、12 位 DAC 和雙比較器
• 靈活的時鐘系統，內置 32 MHz 振盪器並支持外部晶振
• 最多 52 個 GPIO，可配置上拉/下拉和中斷功能
• 通信外設：4 個 UART、4 個 SPI、2 個 I2C、1 個 CAN-FD 控制器
• 增強型 DMA 控制器，無需 CPU 干預即可傳輸數據
• 硬件安全特性：128 位唯一器件 ID、CRC 加速器和存儲器保護單元
• 超低功耗：活動模式 90 µA/MHz，待機模式（含 RTC）1 µA

典型應用場景

• 工業控制與自動化（例如 PLC I/O 模塊、電機驅動）
• 樓宇自動化（例如智能恆溫器、照明控制器）
• 消費電子（例如智能家居中樞、可穿戴設備）
• 汽車後市場（例如儀表盤顯示、傳感器模塊）
• 5G 基站電源管理與監控
• 醫療設備（例如便攜式診斷設備）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MSPM0G1505SPMR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
