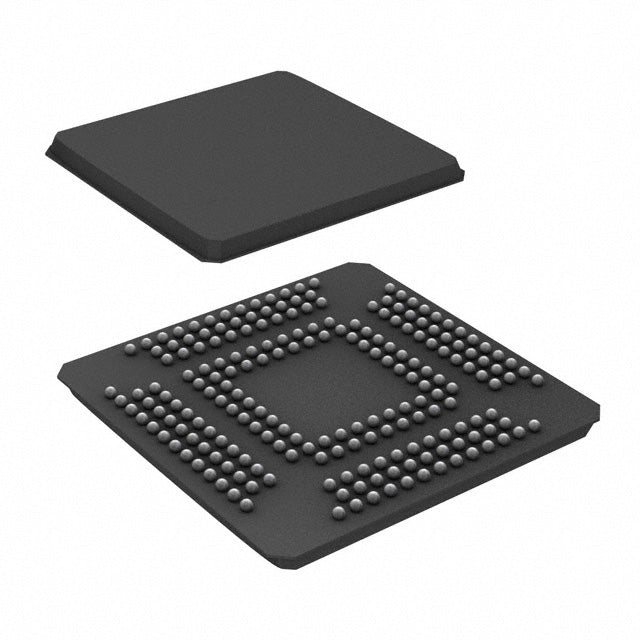

PCI2050IGHK TI PCI-to-PCI Bridge | 209-BGAMICROSTAR (16x16) | 32-bit, 66MHz

Product Overview

The PCI2050IGHK is a high-performance PCI-to-PCI bridge from Texas Instruments, designed to provide a seamless interface between two independent PCI buses. It supports 32-bit, 66MHz operation and is housed in a compact 209-ball BGA MICROSTAR package (16x16mm). This bridge enables system designers to expand the number of PCI slots or isolate bus segments for improved performance and reliability. With advanced features like peer-to-peer transactions, delayed transactions, and programmable arbitration, the PCI2050IGHK is ideal for embedded systems, industrial computing, and telecommunications infrastructure.

Detailed Technical Specifications

Key Features

• 32-bit, 66MHz PCI-to-PCI bridge
• Supports peer-to-peer transactions between secondary buses
• Delayed transaction support for improved bus utilization
• Programmable arbitration for up to 4 masters on secondary bus
• Compliant with PCI Local Bus Specification Rev 2.3
• Low power consumption with 3.3V core and I/O
• Compact 209-ball BGA MICROSTAR package (16x16mm)
• Industrial temperature range (-40°C to +85°C)

Target Applications

• 5G base station control boards requiring multiple PCI slots
• Automotive infotainment dashboards with PCI expansion
• Industrial embedded systems for factory automation
• Network routers and switches for PCI bus isolation
• Medical imaging equipment needing high-bandwidth PCI connectivity

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCI2050IGHK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

PCI2050IGHK 是德州儀器（TI）推出的一款高性能 PCI-to-PCI 橋接器，專為在兩個獨立 PCI 總線之間提供無縫接口而設計。它支持 32 位、66MHz 操作，並採用緊湊的 209 球 BGA MICROSTAR 封裝（16x16mm）。該橋接器使系統設計人員能夠擴展 PCI 插槽數量或隔離總線段，以提高性能和可靠性。憑藉點對點事務、延遲事務和可編程仲裁等高級功能，PCI2050IGHK 非常適合嵌入式系統、工業計算和電信基礎設施。

詳細技術參數

核心特性

• 32 位、66MHz PCI-to-PCI 橋接器
• 支持次總線之間的點對點事務
• 延遲事務支持，提高總線利用率
• 可編程仲裁，支持次總線上最多 4 個主設備
• 符合 PCI 本地總線規範 Rev 2.3
• 低功耗，3.3V 核心和 I/O
• 緊湊的 209 球 BGA MICROSTAR 封裝（16x16mm）
• 工業溫度範圍（-40°C 至 +85°C）

典型應用場景

• 需要多個 PCI 插槽的 5G 基站控制板
• 帶有 PCI 擴展的汽車信息娛樂儀表板
• 用於工廠自動化的工業嵌入式系統
• 用於 PCI 總線隔離的網絡路由器和交換機
• 需要高帶寬 PCI 連接的醫療成像設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 PCI2050IGHK 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
