PCI4410AGHK TI Interface Controller | 209-BGAMICROSTAR(16x16) | PCIe Gen2, 4-Port

Product Overview

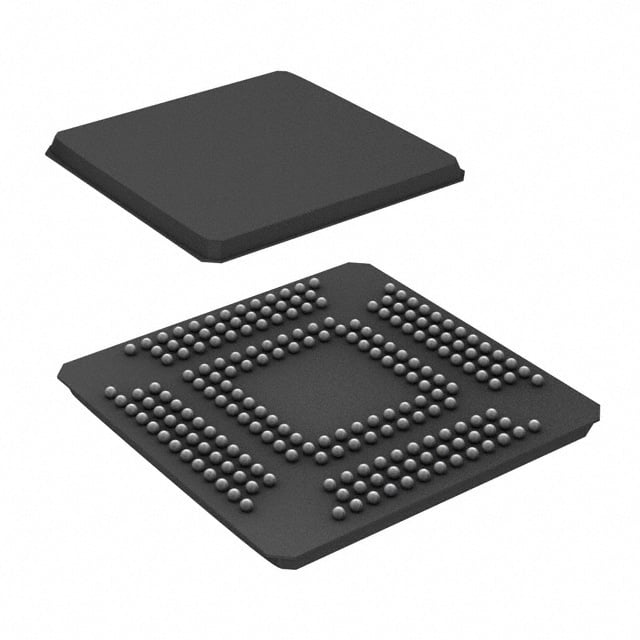

The PCI4410AGHK is a high-performance PCI Express (PCIe) Gen2 switch from Texas Instruments, designed for embedded systems requiring flexible I/O expansion. It integrates four downstream ports and one upstream port, supporting lane widths up to x4. Housed in a compact 209-ball BGA MICROSTAR package (16x16 mm), it is ideal for space-constrained applications. The device offers advanced features such as non-transparent bridging (NTB) for multi-host systems, hot-plug support, and power management.

Detailed Technical Specifications

Key Features

• PCI Express Gen2 compliant with 5 GT/s data rate per lane
• Flexible port configuration: 1 upstream, 4 downstream ports
• Non-transparent bridging for multi-host isolation and failover
• Hot-plug capability for live insertion/removal
• Advanced power management with Active State Power Management (ASPM)
• Compact 16x16 mm BGA package for space-constrained designs
• Supports up to 128-byte maximum payload size
• Integrated SerDes with equalization for robust signal integrity

Target Applications

• 5G base station control plane and data plane bridging
• Automotive infotainment and dashboard systems
• Industrial automation and PLC backplane connectivity
• Network attached storage (NAS) and server add-in cards
• Medical imaging equipment requiring high-speed data transfer
• Embedded computing modules (e.g., COM Express, Qseven)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCI4410AGHK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

PCI4410AGHK 是德州儀器（TI）推出的高性能 PCI Express Gen2 交換器，專為需要靈活 I/O 擴展的嵌入式系統設計。它集成四個下行端口和一個上行端口，支持最高 x4 通道寬度。採用緊湊的 209 球 BGA MICROSTAR 封裝（16x16 mm），非常適合空間受限的應用。該器件提供高級功能，如用於多主機系統的非透明橋接（NTB）、熱插拔支持和電源管理。

詳細技術參數

核心特性

• 符合 PCI Express Gen2 標準，每通道數據速率 5 GT/s
• 靈活的端口配置：1 上行，4 下行
• 非透明橋接，用於多主機隔離和故障轉移
• 熱插拔功能，支持在線插入/移除
• 高級電源管理，包括主動狀態電源管理 (ASPM)
• 緊湊的 16x16 mm BGA 封裝，適合空間受限設計
• 支持最大 128 字節有效載荷
• 集成 SerDes 和均衡器，確保信號完整性

典型應用場景

• 5G 基站控制平面和數據平面橋接
• 汽車信息娛樂系統和儀表板
• 工業自動化和 PLC 背板連接
• 網絡附加存儲 (NAS) 和服務器附加卡
• 需要高速數據傳輸的醫療成像設備
• 嵌入式計算模塊（例如 COM Express, Qseven）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 PCI4410AGHK 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
