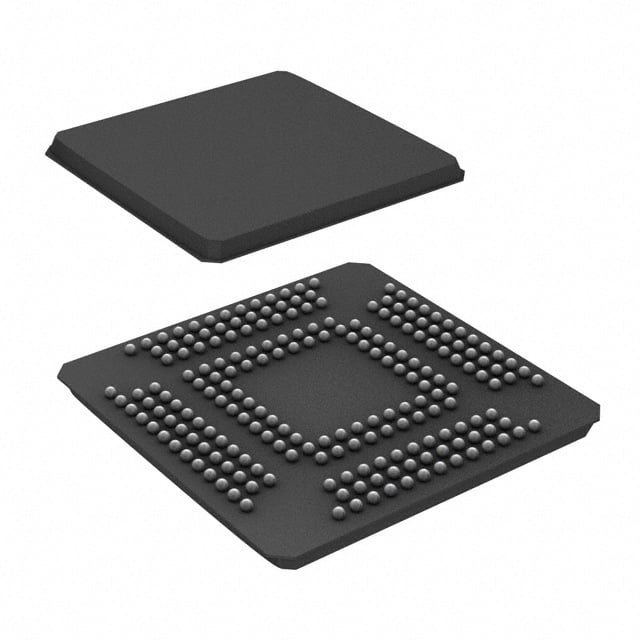

PCI7610GHK TI PCIe Switch | 209-BGAMICROSTAR（16X16） | 32 Lanes, 16 Ports

Product Overview

The PCI7610GHK from Texas Instruments is a high-performance PCI Express Gen3 switch designed for demanding applications requiring high bandwidth and low latency. It features 32 lanes and 16 ports, supporting up to 8 GT/s per lane. The device is housed in a compact 209-ball BGA MICROSTAR package (16x16 mm), making it suitable for space-constrained designs. It offers advanced features such as non-transparent bridging, multicast, and advanced error reporting, ensuring robust and reliable operation in critical systems.

Detailed Technical Specifications

Key Features

• 32 PCI Express Gen3 lanes with 16 flexible ports for scalable connectivity
• Low latency cut-through architecture for real-time data processing
• Advanced error containment with ECRC and advanced error reporting
• Non-transparent bridging for multi-host and isolation applications
• Multicast support for efficient data distribution
• Hot-plug and surprise removal support for high-availability systems
• Compact 16x16 mm BGA package for space-constrained designs

Target Applications

• 5G base stations (e.g., massive MIMO, distributed units)
• Data center servers and storage systems (e.g., NVMe SSD arrays)
• Industrial embedded computing (e.g., machine vision, robotics controllers)
• Automotive advanced driver-assistance systems (ADAS) and infotainment dashboards
• High-performance computing (HPC) clusters and AI accelerators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCI7610GHK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

PCI7610GHK 是德州儀器（TI）推出的一款高效能 PCI Express Gen3 交換器，專為需要高頻寬和低延遲的應用而設計。它具備 32 條通道和 16 個端口，每條通道支援高達 8 GT/s 的數據傳輸速率。該器件採用緊湊的 209 球 BGA MICROSTAR 封裝（16x16 mm），適合空間受限的設計。它提供非透明橋接、多播和高級錯誤報告等先進功能，確保在關鍵系統中實現穩定可靠的運行。

詳細技術參數

核心特性

• 32 條 PCI Express Gen3 通道，16 個靈活端口，實現可擴展連接
• 低延遲直通架構，適用於即時數據處理
• 高級錯誤遏制，支援 ECRC 和高級錯誤報告
• 非透明橋接，適用於多主機和隔離應用
• 多播支援，實現高效數據分發
• 熱插拔和意外移除支援，適用於高可用性系統
• 緊湊的 16x16 mm BGA 封裝，適合空間受限設計

典型應用場景

• 5G 基站（例如大規模 MIMO、分佈式單元）
• 數據中心伺服器和存儲系統（例如 NVMe SSD 陣列）
• 工業嵌入式計算（例如機器視覺、機器人控制器）
• 汽車高級駕駛輔助系統（ADAS）和資訊娛樂儀表板
• 高性能計算（HPC）集群和 AI 加速器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 PCI7610GHK 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
