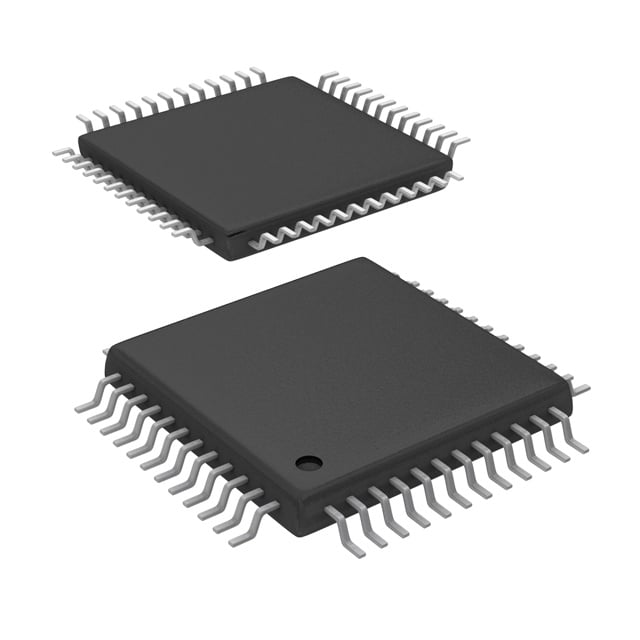

PCM4220PFB TI Audio ADC | 48-TQFP (7x7) | 24-Bit, 216kHz

Product Overview

The PCM4220PFB is a high-performance, 24-bit, 216kHz sampling stereo audio analog-to-digital converter (ADC) from Texas Instruments. It features a dynamic range of 123dB and total harmonic distortion plus noise (THD+N) of -105dB, making it ideal for professional audio applications. The device operates from a single +5V analog supply and a +3.3V digital supply, and is available in a compact 48-pin TQFP (7x7mm) package.

Detailed Technical Specifications

Key Features

• 24-bit delta-sigma modulator with 128x oversampling
• High dynamic range: 123 dB (A-weighted)
• Low THD+N: -105 dB
• Sampling rates from 8 kHz to 216 kHz
• Selectable digital filter: linear phase or minimum phase
• Automatic mode detection for sample rate
• Supports I2S, left-justified, and right-justified audio data formats
• On-chip voltage reference
• Power-down mode

Target Applications

• Professional audio mixing consoles (e.g., Yamaha CL5)
• Digital audio workstations (e.g., Avid Pro Tools HDX)
• High-end audio recording interfaces (e.g., RME Fireface UFX+)
• Automotive infotainment systems (e.g., Tesla Model S audio system)
• Broadcast equipment (e.g., Soundcraft Si Impact)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PCM4220PFB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
