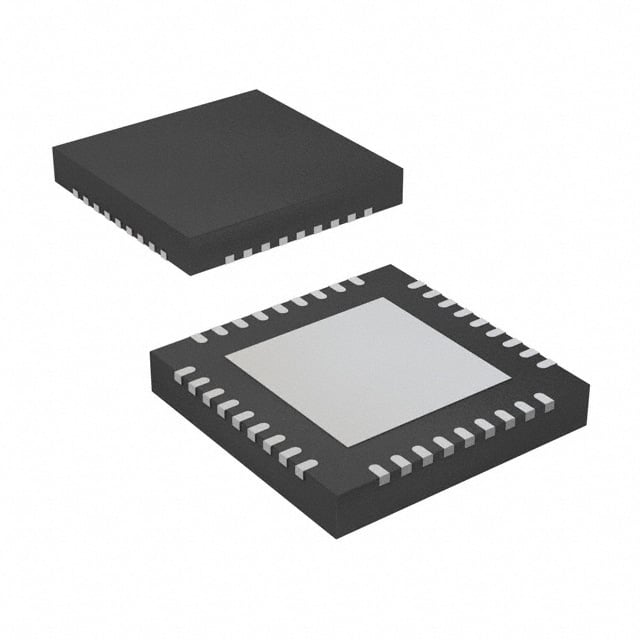

PGA400QRHHTEP TI Sensor Signal Conditioner | 36-VQFN (6x6) | ±0.1% Accuracy, SPI

Product Overview

The PGA400QRHHTEP is a high-performance sensor signal conditioner from Texas Instruments, designed for precise amplification and conditioning of resistive bridge sensors. Housed in a compact 36-VQFN (6x6 mm) package, it integrates a programmable gain amplifier (PGA), analog-to-digital converter (ADC), and digital signal processing (DSP) for enhanced accuracy and flexibility. This device is ideal for automotive, industrial, and medical applications requiring reliable sensor interface with minimal external components.

Detailed Technical Specifications

Key Features

• Integrated PGA with programmable gain from 1 to 1000
• 16-bit delta-sigma ADC for high-resolution conversion
• On-chip temperature sensor for compensation
• SPI interface for digital communication
• Low power consumption: 2.5 mA typical
• Wide operating temperature range: -55°C to +210°C
• Small footprint: 36-VQFN (6x6 mm)

Target Applications

• Automotive: Tire pressure monitoring systems (TPMS), engine control units (ECU), brake pressure sensors
• Industrial: Pressure transmitters, flow meters, level sensors
• Medical: Patient monitoring devices, infusion pumps
• Consumer: Smart home sensors, HVAC systems
• Specific product examples: 5G base station power monitoring, automotive dashboard pressure sensors, industrial robot arm force sensing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for PGA400QRHHTEP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

PGA400QRHHTEP 是德州儀器推出的一款高性能傳感器信號調理器，專為精確放大和調理電阻橋式傳感器而設計。採用緊湊的 36-VQFN（6x6 mm）封裝，集成了可編程增益放大器（PGA）、模數轉換器（ADC）和數字信號處理（DSP）功能，以實現更高的精度和靈活性。該器件非常適合汽車、工業和醫療應用，只需最少的外部元件即可實現可靠的傳感器接口。

詳細技術參數

核心特性

• 集成 PGA，可編程增益 1 至 1000
• 16 位 Δ-Σ ADC，實現高分辨率轉換
• 片上溫度傳感器，用於補償
• SPI 接口，便於數字通信
• 低功耗：典型值 2.5 mA
• 寬工作溫度範圍：-55°C 至 +210°C
• 小尺寸：36-VQFN（6x6 mm）

典型應用場景

• 汽車：胎壓監測系統（TPMS）、發動機控制單元（ECU）、制動壓力傳感器
• 工業：壓力變送器、流量計、液位傳感器
• 醫療：病人監護設備、輸液泵
• 消費類：智能家居傳感器、暖通空調系統
• 具體產品示例：5G 基站功率監控、汽車儀表盤壓力傳感器、工業機器人手臂力傳感

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 PGA400QRHHTEP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
