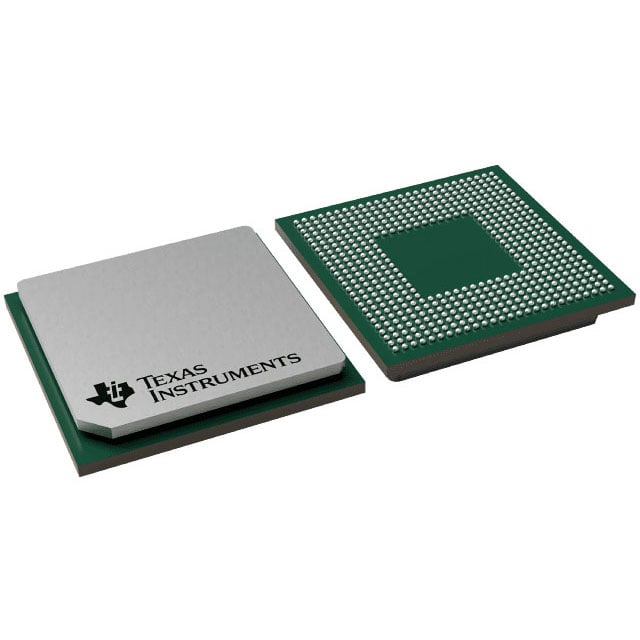

SM320C6455BGTZEP TI DSP | 697-FCBGA (24X24) | 1.2GHz, 2MB L2 Cache

Product Overview

The SM320C6455BGTZEP is a high-performance fixed-point digital signal processor (DSP) from Texas Instruments, designed for demanding real-time processing applications. It features a TMS320C64x+ core operating at up to 1.2 GHz, delivering up to 9600 MIPS. The device integrates 2 MB of L2 cache/SRAM, a 64-bit DDR2 memory controller, and multiple high-speed interfaces including Serial RapidIO, Gigabit Ethernet, and PCI Express. Housed in a 697-ball FCBGA package (24x24 mm), it is optimized for industrial and military temperature ranges.

Detailed Technical Specifications

Key Features

• High-performance fixed-point DSP core with 1.2 GHz clock speed
• 2 MB on-chip L2 memory configurable as cache or SRAM
• Integrated DDR2 memory controller supporting up to 800 MHz
• Serial RapidIO v1.2 interface for high-speed interconnects
• Gigabit Ethernet MAC with SGMII
• PCI Express Gen1 single lane
• Enhanced DMA engine with 64 independent channels
• Industrial/military temperature range support
• Low power consumption with multiple power-down modes

Target Applications

• 5G base station digital front-end processing
• Radar and sonar signal processing
• Medical imaging (ultrasound, MRI)
• Industrial automation and control
• Test and measurement equipment
• Military communications and electronic warfare
• High-end audio processing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SM320C6455BGTZEP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SM320C6455BGTZEP 是德州儀器（TI）推出的一款高性能定點數位信號處理器（DSP），專為要求嚴苛的即時處理應用而設計。它採用 TMS320C64x+ 核心，工作頻率高達 1.2 GHz，可提供高達 9600 MIPS 的運算能力。該器件集成了 2 MB 的 L2 快取/SRAM、64 位元 DDR2 記憶體控制器，以及多種高速介面，包括 Serial RapidIO、Gigabit Ethernet 和 PCI Express。採用 697 球 FCBGA 封裝（24x24 mm），支援工業級和軍用級溫度範圍。

詳細技術參數

核心特性

• 高性能定點 DSP 核心，時脈 1.2 GHz
• 2 MB 片上 L2 記憶體，可配置為快取或 SRAM
• 整合 DDR2 記憶體控制器，支援高達 800 MHz
• Serial RapidIO v1.2 介面，用於高速互連
• Gigabit Ethernet MAC 附 SGMII
• PCI Express Gen1 單通道
• 增強型 DMA 引擎，64 個獨立通道
• 支援工業/軍用溫度範圍
• 低功耗設計，多種省電模式

典型應用場景

• 5G 基地台數位前端處理
• 雷達與聲納信號處理
• 醫療影像（超音波、MRI）
• 工業自動化與控制
• 測試與量測設備
• 軍事通訊與電子戰
• 高端音頻處理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SM320C6455BGTZEP 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
