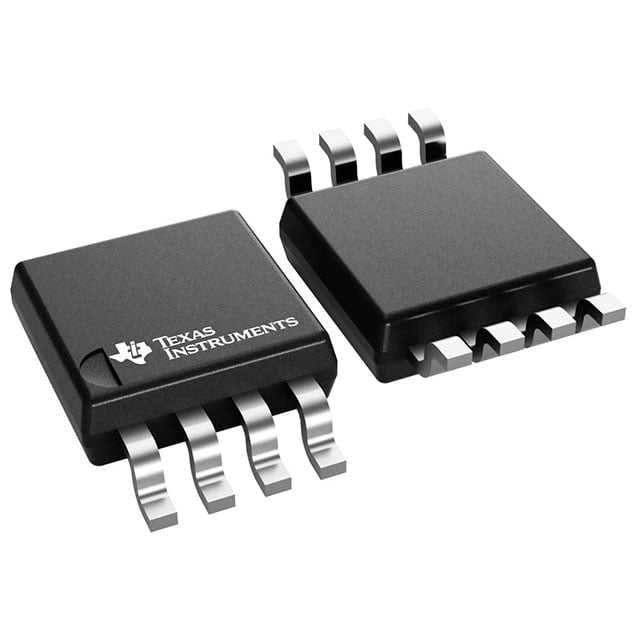

SN65EL11DGK TI Clock Fanout Buffer | 8-VSSOP | 3.3V, 1:2 Differential

Product Overview

The SN65EL11DGK from Texas Instruments is a high-performance 1:2 differential clock fanout buffer designed for low-skew, low-jitter clock distribution in high-speed digital systems. Operating from a single 3.3V supply, it features two identical differential outputs that replicate the input clock with minimal additive phase jitter. The device is housed in a compact 8-pin VSSOP package, making it ideal for space-constrained applications. With a typical propagation delay of only 400 ps and output skew less than 20 ps, the SN65EL11DGK ensures precise timing alignment critical for demanding applications such as telecommunications, data centers, and test equipment.

Detailed Technical Specifications

Key Features

• 1:2 differential fanout buffer with PECL inputs and outputs
• Low propagation delay: 400 ps typical
• Low output skew: 20 ps typical
• Ultra-low additive jitter: 0.2 ps RMS typical
• Wide operating frequency range: DC to 3.2 GHz
• Single 3.3V supply operation
• Industrial temperature range: -40°C to +85°C
• Compact 8-pin VSSOP package

Target Applications

• 5G base station clock distribution
• Automotive advanced driver-assistance systems (ADAS) and infotainment dashboards
• High-speed data converters (ADC/DAC) clock buffering
• Network switches and routers
• Test and measurement equipment
• FPGA and ASIC clock fanout

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN65EL11DGK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
