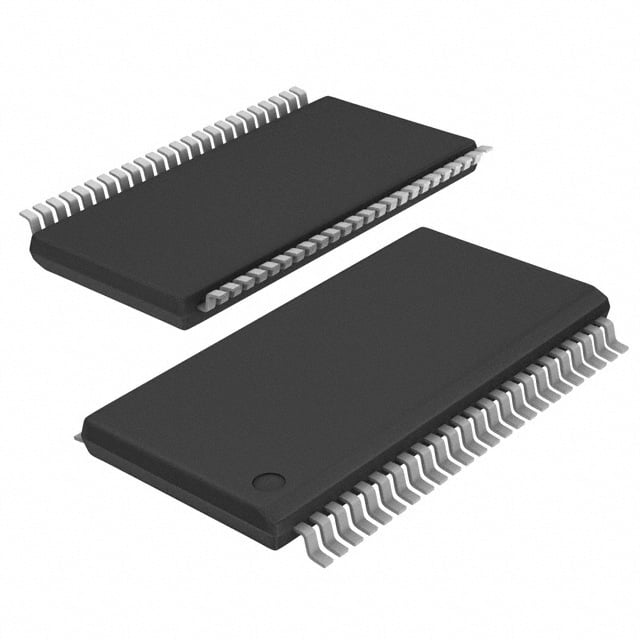

SN74ABT16541ADGVR TI Buffer/Driver | 48-TVSOP | 16-bit, 3.3V/5V

Product Overview

The SN74ABT16541ADGVR is a 16-bit buffer/driver from Texas Instruments, designed with advanced BiCMOS technology (ABT) to provide high-speed operation and low power consumption. It features two independent 8-bit sections with non-inverting outputs, each controlled by separate output-enable (OE) inputs. The device is housed in a compact 48-pin TVSOP package, making it suitable for space-constrained applications. It operates over a wide voltage range of 4.5V to 5.5V and is compatible with 3.3V logic levels, offering flexibility in mixed-voltage systems.

Detailed Technical Specifications

Key Features

• 16-bit non-inverting buffer/driver with two 8-bit sections
• Separate output-enable (OE) inputs for each section
• High drive capability: -32 mA IOH, 64 mA IOL
• Fast propagation delay: 3.5 ns typical at 5V
• Wide supply voltage range: 4.5V to 5.5V
• 3.3V logic compatible inputs
• Low power consumption with ABT BiCMOS technology
• ESD protection exceeds 2000V (HBM)
• Packaged in space-saving 48-TVSOP

Target Applications

• 5G base station control boards: buffering address/data lines between FPGA and memory
• Automotive dashboard displays: driving LED indicators and segment drivers
• Industrial PLCs: signal buffering for I/O modules
• Telecommunications equipment: line card interface buffering
• Data storage systems: buffering between controller and NAND flash

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT16541ADGVR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

SN74ABT16541ADGVR 是德州儀器（TI）推出的16位緩衝器/驅動器，採用先進的BiCMOS（ABT）技術，提供高速操作和低功耗。該器件包含兩個獨立的8位部分，具有同相輸出，每個部分由單獨的輸出使能（OE）輸入控制。器件採用緊湊的48引腳TVSOP封裝，適合空間受限的應用。工作電壓範圍為4.5V至5.5V，兼容3.3V邏輯電平，為混合電壓系統提供靈活性。

詳細技術參數

核心特性

• 16位同相緩衝器/驅動器，分為兩個8位部分
• 每個部分有獨立的輸出使能（OE）輸入
• 高驅動能力：IOH -32 mA，IOL 64 mA
• 快速傳播延遲：5V時典型值3.5 ns
• 寬電源電壓範圍：4.5V 至 5.5V
• 兼容3.3V邏輯輸入
• 採用ABT BiCMOS技術，低功耗
• ESD保護超過2000V（HBM）
• 節省空間的48-TVSOP封裝

典型應用場景

• 5G基站控制板：在FPGA與存儲器之間緩衝地址/數據線
• 汽車儀表盤顯示：驅動LED指示燈和段驅動器
• 工業PLC：I/O模塊的信號緩衝
• 電信設備：線路卡接口緩衝
• 數據存儲系統：控制器與NAND閃存之間的緩衝

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 SN74ABT16541ADGVR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
