SN74ABT32245PZ TI Bus Transceiver | 32-bit | 3-State, 4.5V-5.5V

Product Overview

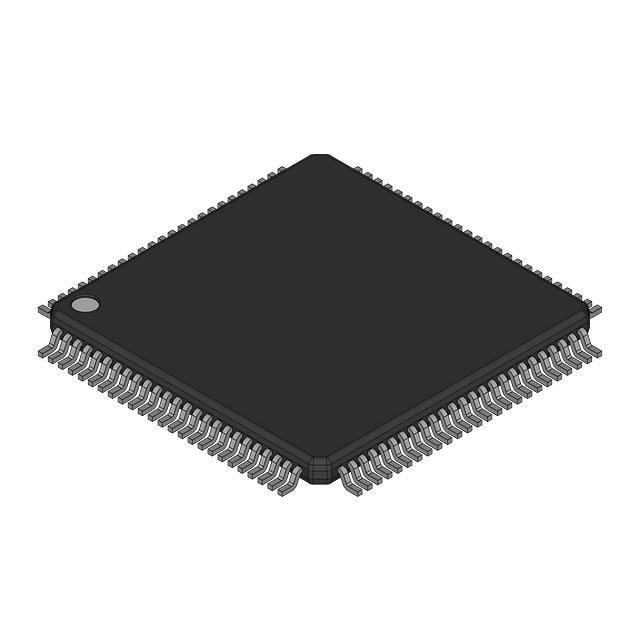

The SN74ABT32245PZ is a 32-bit (4-byte) bidirectional bus transceiver from Texas Instruments, designed for asynchronous communication between two data buses. It features 3-state outputs and operates from a 4.5V to 5.5V supply voltage. The device is organized as four 8-bit transceivers with separate output-enable (OE) and direction-control (DIR) pins for each byte, providing flexibility in data flow control. Housed in a 100-pin LQFP package, it is ideal for high-performance memory interfaces, data communication, and bus isolation applications.

Detailed Technical Specifications

Key Features

• 32-bit bidirectional bus transceiver with 4-byte organization
• Separate output-enable and direction-control for each byte
• 3-state outputs for bus isolation
• Low propagation delay (4.1 ns max)
• TTL-compatible inputs and outputs
• ESD protection exceeds 2000 V per MIL-STD-883, Method 3015
• Latch-up performance exceeds 500 mA per JESD 17

Target Applications

• Memory interface for 5G base station controllers
• Data bus isolation in automotive dashboard systems
• Industrial PLC backplane communication
• High-speed data acquisition systems
• Telecommunications switching equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for SN74ABT32245PZ. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
